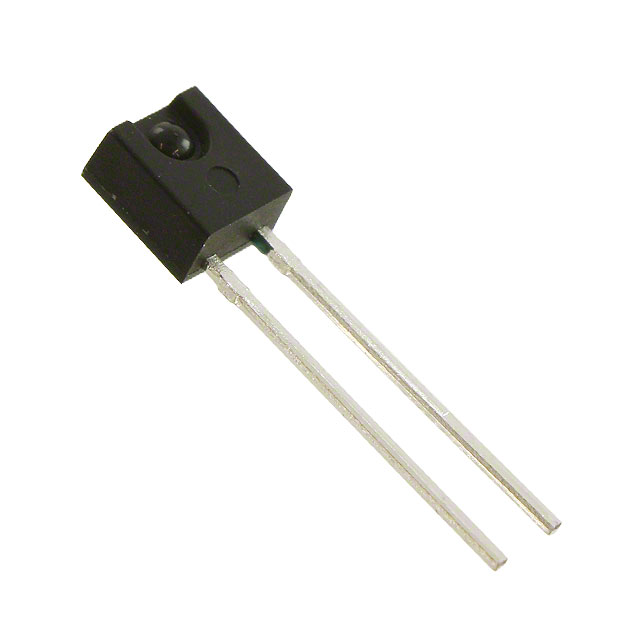

QSE133

Manufacturer :

onsemi

Product Category :

Optical Sensors - Phototransistors

Configuration :

Single

Rise Time :

20μs

Collector Emitter Voltage (VCEO) :

30V

Max Power Dissipation :

100mW

Collector Emitter Breakdown Voltage :

30V

Weight :

135mg

Lead Free :

Lead Free

Output Power :

100mW

RoHS Status :

ROHS3 Compliant

Max Input Current :

100μA

Fall Time (Typ) :

50 µs

Additional Feature :

Side Looker

Infrared Range :

yes

Output Voltage :

30V

Operating Temperature :

-40°C~100°C TA

Polarity :

NPN

Package / Case :

Radial, Side View

Dark Current :

100nA

Power Consumption :

100mW

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

14 Weeks

Published :

2016

Terminal Finish :

Tin (Sn)

Number of Pins :

2

Shape :

Round

Mount :

Through Hole

Optoelectronic Device Type :

PHOTO DARLINGTON

Number of Elements :

1

Max Collector Current :

9mA

Orientation :

Side View

REACH SVHC :

Unknown

Packaging :

Bulk

Pbfree Code :

yes

Viewing Angle :

50°

Mounting Type :

Through Hole

JESD-609 Code :

e3

Power Dissipation :

100mW

ECCN Code :

EAR99

Wavelength - Peak :

880 nm

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Lens Color :

Black, Clear

Lens Style :

Domed

Light Current-Nom :

9mA

Number of Functions :

1

Operating Supply Voltage :

5V
