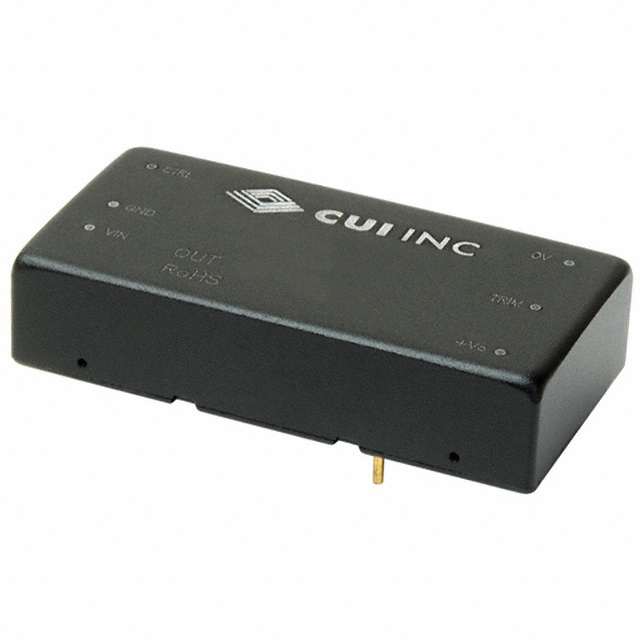

PYB20-Q24-D5

Manufacturer :

Bel

Product Category :

Number of Outputs :

2

Packaging :

Tube

Efficiency :

86%

Height :

11.938mm

Number of Functions :

1

Qualification Status :

Not Qualified

Max Power Dissipation :

20W

RoHS Status :

RoHS Compliant

Isolation :

Isolated

Operating Temperature :

-40°C~85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Size / Dimension :

2.00Lx1.00W x 0.47 H 50.8mmx25.4mmx11.8mm

JESD-30 Code :

R-MDMA-P6

Mounting Type :

Through Hole

Factory Lead Time :

13 Weeks

Terminal Position :

Dual

Current - Output (Max) :

2A 2A

Series :

PYB20 (20W)

Voltage - Input (Min) :

9V

Voltage - Isolation :

1.5kV

Applications :

ITE (Commercial)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Length :

50.8mm

Input Voltage-Nom :

24V

Output Power :

20W

Mount :

Through Hole

Voltage - Output 2 :

-5V

Current - Output 1 :

2A

Number of Terminations :

6

Weight :

28.349523g

Output Voltage :

5V

Terminal Form :

PIN/PEG

Lead Free :

Lead Free

Control Features :

Enable, Active High

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Input (Max) :

36V

Type :

Isolated Module

Current - Output 2 :

2A

Published :

2013

ECCN Code :

EAR99

Feature :

Remote On/Off, OCP, OVP, SCP, UVLO

Package / Case :

6-DIP Module

Trim/Adjustable Output :

No

Pbfree Code :

yes

Max Output Current :

2A
