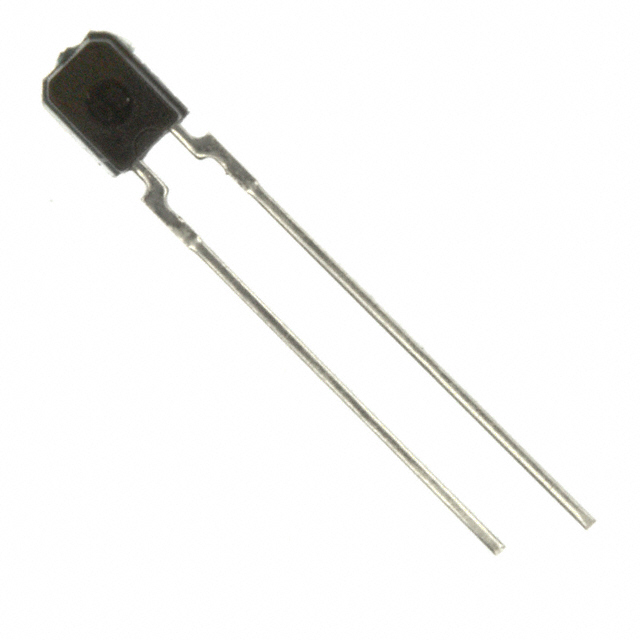

PT480FE0000F

Share

Or copy the link below:

Mfr.Part #
PT480FE0000F
Manufacturer
Sharp Microelectronics
Package / Case
Radial
Datasheet
Download
Description
SENSOR PHOTO 860NM SIDE VIEW RAD
Stock
5,196
In Stock :
5,196

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sharp Microelectronics
Product Category :
Optical Sensors - Phototransistors
Optoelectronic Device Type :
PHOTO TRANSISTOR
Configuration :
Single
Output Current :
20mA
Power Consumption :
75mW
Power Dissipation :
75mW
Length :
3mm
Published :
1997
Lead Length :
17.5mm
Factory Lead Time :
16 Weeks
Collector Emitter Breakdown Voltage :
35V
Lens Style :
Domed
Collector Emitter Voltage (VCEO) :
35V
REACH SVHC :
Unknown
Polarity :
NPN
Height :
4mm
Width :
2.95mm
Orientation :
Side View
RoHS Status :
RoHS Compliant
Lead Free :
Lead Free
Radiation Hardening :
No
Shape :
Round
Dark Current :
100nA
Mounting Type :
Through Hole
Max Collector Current :
20mA
Rise Time :
3μs
Light Current-Nom :
0.8mA
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lens Color :
Black
Wavelength - Peak :
860 nm
Number of Pins :
2
Fall Time (Typ) :
3.5 μs
Terminal Finish :
Tin/Silver/Copper (Sn/Ag/Cu)
Current - Dark (Id) (Max) :
100μA
Operating Temperature :
-25°C~85°C TA
Number of Channels :
1
Mount :
Through Hole
Infrared Range :
yes
Viewing Angle :
70°
Number of Functions :
1
Max Power Dissipation :
75mW
Packaging :
Bag
JESD-609 Code :
e1
Package / Case :
Radial
Introducing Optical Sensors - Phototransistors Sharp Microelectronics PT480FE0000F from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Number of Pins:2, Operating Temperature:-25°C~85°C TA, Number of Channels:1, Package / Case:Radial, PT480FE0000F pinout, PT480FE0000F datasheet PDF, PT480FE0000F amp .Beyond Optical Sensors - Phototransistors Sharp Microelectronics PT480FE0000F ,we also offer TEMT6200FX01, TEMT6000X01, SFH 309 FA-5/6, Our vast inventory has you covered. Contact us now for immediate solutions.
