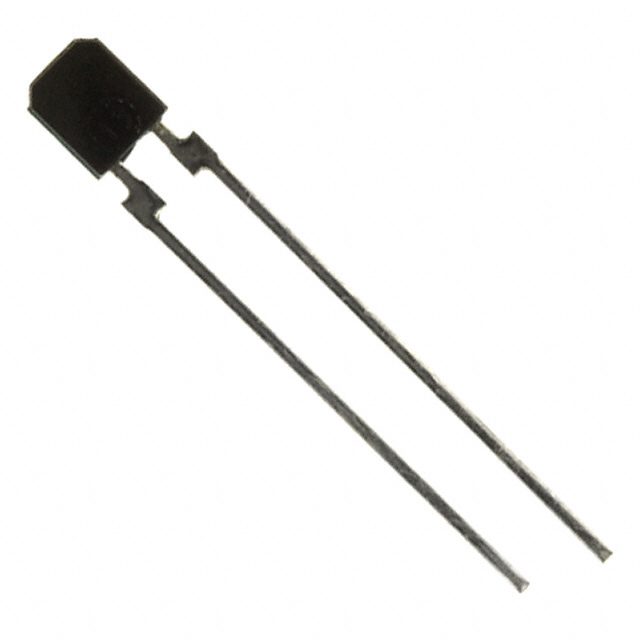

PT4800FB

Manufacturer :

Sharp Microelectronics

Product Category :

Optical Sensors - Phototransistors

Mounting Type :

Through Hole

Package / Case :

Radial

Dark Current :

100μA

Power Dissipation :

75mW

Current - Dark (Id) (Max) :

100μA

Number of Pins :

2

Wavelength :

860nm

Power - Max :

75mW

Packaging :

Tube

Current - Collector (Ic) (Max) :

20mA

Orientation :

Side View

Number of Elements :

1

Max Collector Current :

20mA

Voltage - Collector Emitter Breakdown (Max) :

35V

Collector Emitter Voltage (VCEO) :

6V

Fall Time (Typ) :

3.5 μs

Rise Time :

3μs

Collector Emitter Breakdown Voltage :

35V

RoHS Status :

Non-RoHS Compliant

Polarity :

NPN

Min Operating Temperature :

-25°C

Max Power Dissipation :

75mW

Max Operating Temperature :

85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

1997

Mount :

Through Hole

Viewing Angle :

70°

Lead Free :

Contains Lead
