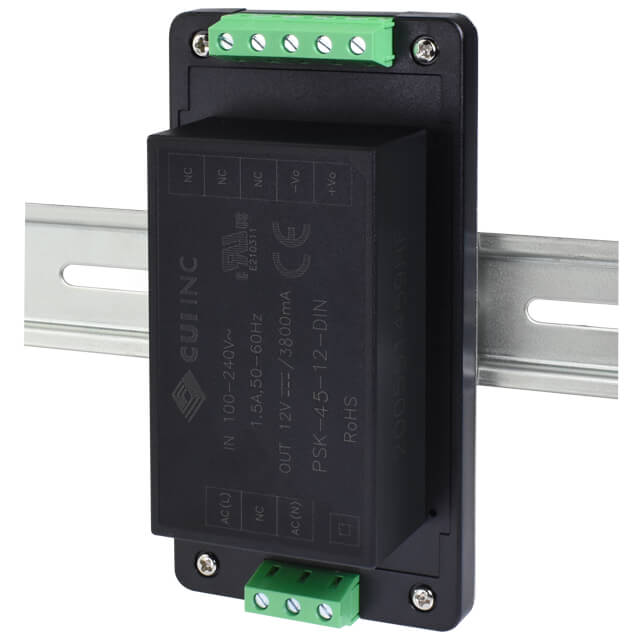

PSK-45-12-DIN

Manufacturer :

Bel

Product Category :

Input Voltage :

85 VAC to 264 VAC, 100 VDC to 370 VDC

Voltage - Output 4 :

-

Minimum DC Input Voltage (V) :

100

Minimum Operating Temperature :

- 40 C

Mounting :

DIN Rail

Approval Agency :

CE, cURus

Maximum AC Input Voltage (V) :

264

PCB changed :

8

Medical :

No

Number of Outputs :

1

Package Height :

127

ECCN (US) :

EAR99

Applications :

ITE (Commercial)

Base Product Number :

PSK-45

Maximum DC Input Voltage (V) :

370

Height :

42.4 mm

Package :

Tray

Series :

PSK-45-DIN

Input Type :

1-Phase / Single Phase

Line Regulation :

0.5%(Typ)

Output Type :

FIXED

Voltage - Output 1 :

12V

Pin Count :

8

Maximum Operating Temperature :

+ 70 C

Power Indicator :

No

Packaging :

Tray

Subcategory :

AC-DC Power Supply

Operating Temperature :

-40°C ~ 70°C (With Derating)

Output Power (W) :

45

Load Regulation :

1%(Typ)

RoHS Status :

Yes with exemptions

Standard Number :

62368-1

Input/Output Type :

AC/DC

Product Category :

DIN Rail Power Supplies

Size / Dimension :

5.39 L x 2.76 W x 1.49 H (137.0mm x 70.0mm x 37.9mm)

Manufacturer :

CUI Inc.

Minimum Isolation Voltage :

4000VAC

Voltage - Output 2 :

-

Length :

137 mm

Output Current (A) :

3.8

Voltage - Isolation :

4 kV

Minimum AC Input Voltage (V) :

85

Efficiency (%) :

84(Typ)

Style :

DIN Rail

Features :

Universal Input

Voltage - Output 6 :

-

Package Length :

42.4

Configurable :

No

Power (Watts) :

46W

Current - Output (Max) :

3.8A

Product Status :

Active

Minimum Load Required :

-

Input Frequency (Hz) :

47 to 63

Type :

Regulated

Maximum Input Current (A) :

1.5

Mounting Style :

DIN Rail Mount

Power Supply Color :

Black

Isolation Voltage :

4 kVAC

Maximum Operating Temperature (°C) :

70

Output Voltage (V) :

12

Input Connector Type :

Screw Terminal Block

Width :

70 mm

Output Power :

45 W

Ripple & Noise :

120mV(Max)

Voltage - Output 5 :

-

Brand :

CUI Inc.

Efficiency :

84%

Voltage - Output 3 :

-

Package Width :

70

Product Type :

DIN Rail Power Supplies

Product :

Switching Supplies

RoHS :

Details

Minimum Operating Temperature (°C) :

-40

Output Connector Type :

Screw Terminal Block
