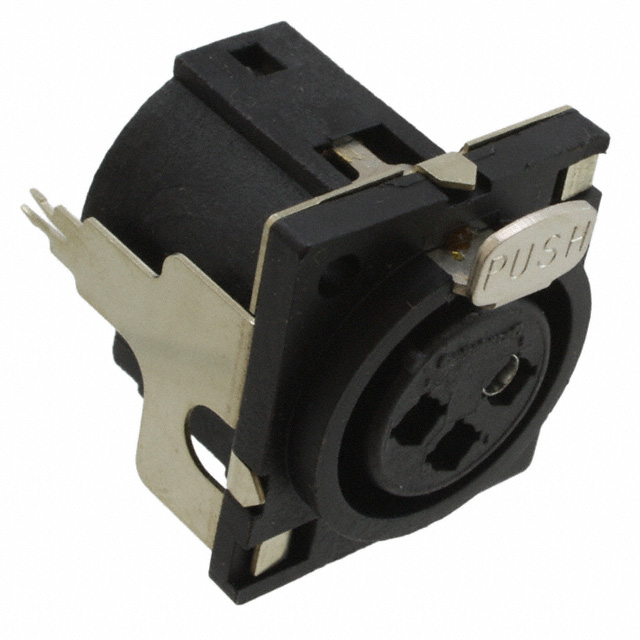

PQG3FST112
Or copy the link below:
- Mfr.Part #
- PQG3FST112
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG FMALE XLR 3P SOLDER
- Stock
- 21,271
- In Stock ：
- 21,271
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Shell Material :
- Thermoplastic, Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Empty Shell :
- No
- Fastening Type :
- Latch Lock
- Contact Plating :
- Tin
- Feature :
- Board Guide, Board Lock, Ground
- MIL Conformance :
- No
- Applications :
- Audio
- Number of Ports :
- 1
- Number of Terminations :
- 4
- Termination :
- Solder
- Factory Lead Time :
- 12 Weeks
- Published :
- 1998
- Backshell Type :
- Solid
- Insulation Material :
- Plastic
- Max Current Rating :
- 10A
- JESD-609 Code :
- e3
- Insert Material :
- Thermoplastic, Glass Filled
- Series :
- Q-G® PQG
- Body/Shell Style :
- Receptacle
- Length :
- 27mm
- Current Rating :
- 10A
- Orientation :
- Keyed
- Mounting Type :
- Panel Mount, Through Hole
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Packaging :
- Bulk
- Operating Temperature :
- -34°C~85°C
- Mixed Contacts :
- No
- Gender :
- FEMALE
- DIN Conformance :
- No
- Mount :
- Flanges, Panel
- Coupling Type :
- Snap
- Mounting Feature :
- Flange
- Depth :
- 30mm
- Color :
- Black
- Number of Positions :
- 3
- ECCN Code :
- EAR99
- Total Number of Contacts :
- 3
- Option :
- GENERAL PURPOSE
- Housing Material :
- Thermoplastic
- IEC Conformance :
- No
- Contact Finish - Mating :
- Electro-Tin
- Shell Size - Insert :
- XLR
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Plug, Female Sockets
- Lead Free :
- Lead Free
- Filter Feature :
- No
- Datasheets
- PQG3FST112
Plug, Female Sockets Thermoplastic, Glass Filled Panel Mount, Through Hole 3 Positions Solder Electro-Tin Bulk Keyed Latch Lock
PQG3FST112 Overview
The product is packaged in Plug, Female Sockets.This device is mounted in the Panel Mount, Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Q-G® PQG Series.There are a number of advantages to its Board Guide, Board Lock, Ground feature.Part Flanges, Panel is mounted to the part.As a result, the device runs at -34°C~85°C Operating Temperature.
PQG3FST112 Features
4 basic kinds of terminations
Q-G® PQG series
PQG3FST112 Applications
There are a lot of Switchcraft Inc.
PQG3FST112 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
