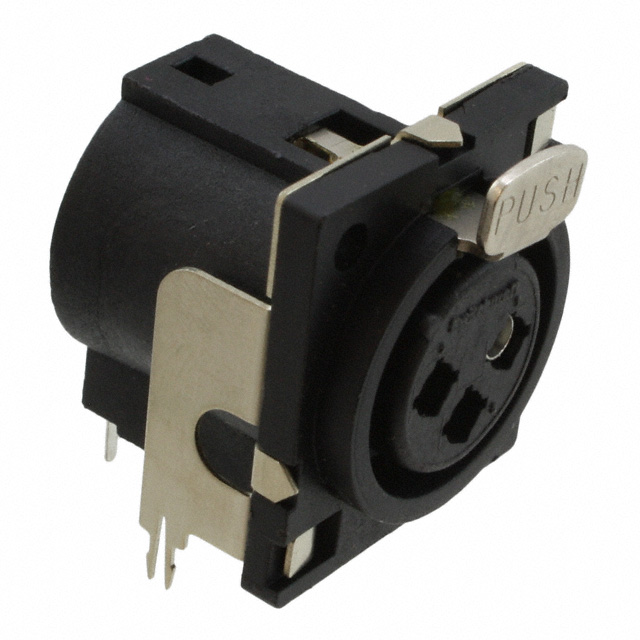

PQG3FRA112
Or copy the link below:
- Mfr.Part #
- PQG3FRA112
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG FMALE XLR 3P SOLDER
- Stock
- 80
- In Stock ：
- 80
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Length :
- 27mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 3
- Series :
- Q-G® PQG
- Color :
- Black
- Body/Shell Style :
- Receptacle
- Gender :
- FEMALE
- Feature :
- Board Guide, Board Lock, Ground
- Insulation Material :
- Plastic
- Backshell Type :
- Solid
- Fastening Type :
- Latch Lock
- Insert Material :
- Thermoplastic, Glass Filled
- Mounting Feature :
- Flange
- Shell Size - Insert :
- XLR
- Current Rating :
- 10A
- Filter Feature :
- No
- Applications :
- Audio
- Option :
- GENERAL PURPOSE
- Height :
- 30mm
- Mount :
- Flanges, Panel, Through Hole
- Shell Material :
- Thermoplastic, Glass Filled
- Published :
- 1998
- Contact Finish - Mating :
- Electro-Tin
- Voltage - Rated :
- 125V
- Number of Terminations :
- 4
- IEC Conformance :
- No
- Operating Temperature :
- -34°C~85°C
- Total Number of Contacts :
- 3
- Empty Shell :
- No
- Max Current Rating :
- 10A
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Contact Plating :
- Tin
- Coupling Type :
- Snap
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- COPPER ALLOY
- Number of Ports :
- 1
- Factory Lead Time :
- 12 Weeks
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Connector Type :
- Plug, Female Sockets
- Orientation :
- Keyed
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Housing Material :
- Thermoplastic
- Mixed Contacts :
- No
- Datasheets
- PQG3FRA112
Plug, Female Sockets Thermoplastic, Glass Filled Panel Mount, Through Hole, Right Angle 3 Positions Solder Electro-Tin Bulk Keyed Latch Lock
PQG3FRA112 Overview
You get it in Plug, Female Sockets packaging.Mounting type Panel Mount, Through Hole, Right Angle is selected for the device.Packaged in a Bulk case.A member of the Q-G® PQG Series.This feature renders it more powerful in a number of ways because of its Board Guide, Board Lock, Ground feature.There's a Flanges, Panel, Through Hole mount on the part.Device runs in -34°C~85°C operating temperature.
PQG3FRA112 Features
4 basic kinds of terminations
Q-G® PQG series
PQG3FRA112 Applications
There are a lot of Switchcraft Inc.
PQG3FRA112 Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
