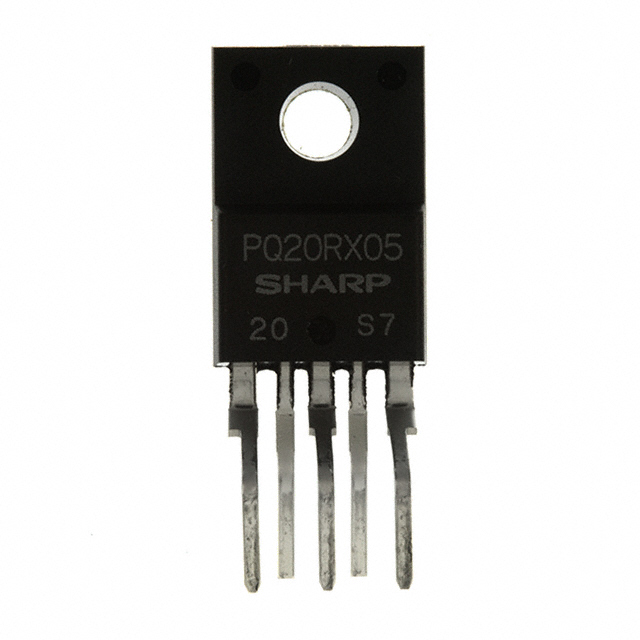

PQ20RX05

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Published :

1999

Number of Outputs :

1

Protection Features :

Over Current, Over Temperature

Voltage - Output (Min/Fixed) :

3V

Voltage - Input (Max) :

24V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Configuration :

Positive

Current - Output :

500mA

Output Type :

Adjustable

Output Voltage :

20V

Mounting Type :

Through Hole

Package / Case :

TO-220-5 Formed Leads

Quiescent Current :

8mA

Mount :

Through Hole

Packaging :

Tube

Output Voltage Accuracy :

2.5 %

Power Dissipation :

10W

Min Input Voltage :

3.5V

RoHS Status :

Non-RoHS Compliant

Max Operating Temperature :

80°C

Polarity :

Positive

Voltage - Output (Max) :

20V

Control Features :

Enable

Min Operating Temperature :

-20°C

Current - Quiescent (Iq) :

8mA

PSRR :

45dB (120Hz)

Voltage Dropout (Max) :

0.5V @ 300mA

Number of Regulators :

1

Lead Free :

Contains Lead

Operating Temperature :

-20°C~80°C

Supplier Device Package :

TO-220-5
