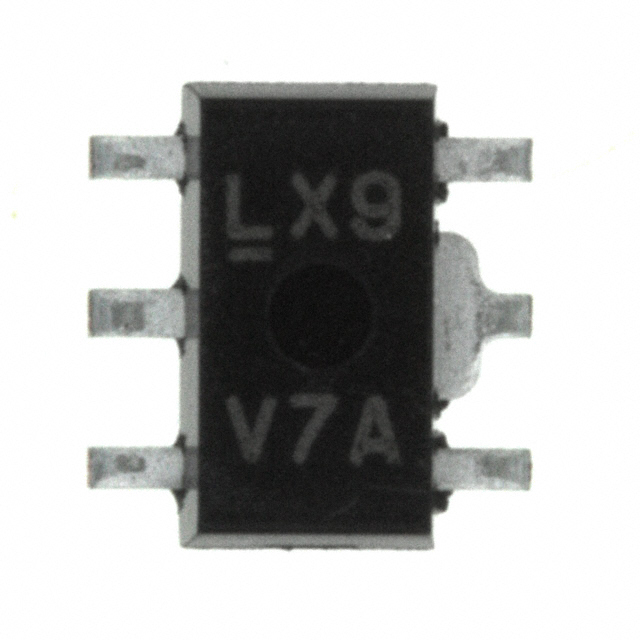

PQ1LAX95MSPQ

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Min Input Voltage :

2.5V

Packaging :

Tape and Reel (TR)

Current - Quiescent (Iq) :

700µA

Dropout Voltage :

700mV

PSRR :

50dB (400Hz)

Operating Temperature :

-40°C~85°C

Quiescent Current :

700µA

Reference Voltage :

1.265V

Current - Output :

500mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Max Power Dissipation :

900mW

Protection Features :

Over Current, Over Temperature

Input Bias Current :

400μA

Max Input Voltage :

15V

Voltage - Output (Min/Fixed) :

1.24V

Polarity :

Positive

Voltage Dropout (Max) :

0.7V @ 300mA

Number of Regulators :

1

Supplier Device Package :

SOT-89

Output Type :

Adjustable

Output Configuration :

Positive

Max Operating Temperature :

85°C

Control Features :

Enable

Min Operating Temperature :

-40°C

Number of Pins :

5

Number of Outputs :

1

Voltage - Input (Max) :

15V

Mount :

Surface Mount

Power Dissipation :

900mW

Package / Case :

SOT-89-5/6

Published :

2006

Output Voltage :

9V

Voltage - Output (Max) :

9V

Mounting Type :

Surface Mount
