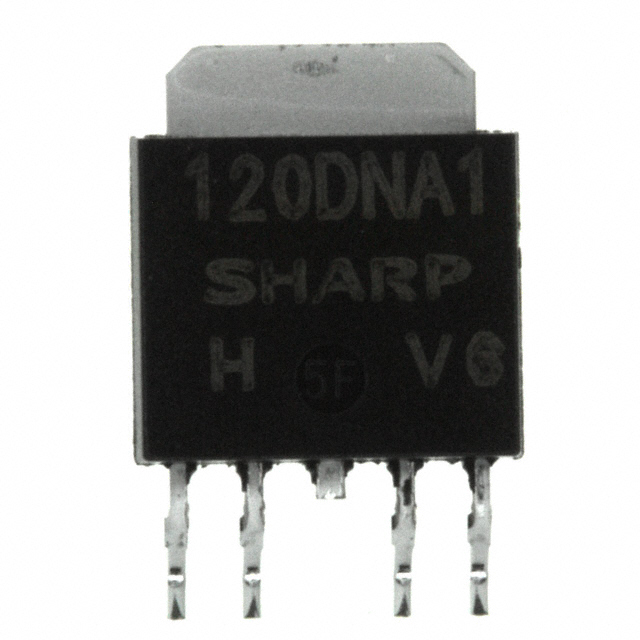

PQ120DNA1ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Terminal Form :

Gull wing

Terminal Position :

Single

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Number of Regulators :

1

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Output Voltage 1 :

12V

Protection Features :

Over Current, Over Temperature

Height Seated (Max) :

2.85mm

Width :

5.5mm

Control Features :

Enable

Length :

6.6mm

Number of Pins :

63

Qualification Status :

Not Qualified

Operating Temperature :

-40°C~85°C

Output Voltage :

12V

Output Configuration :

Positive

Current - Quiescent (Iq) :

8mA

Max Output Current :

1A

Min Output Voltage :

12V

Package / Case :

TO-252-5, DPak (4 Leads + Tab), TO-252AD

JESD-30 Code :

R-PSSO-G4

Reach Compliance Code :

Unknown

Input Bias Current :

4mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Power Dissipation :

8W

Dropout Voltage :

200mV

PSRR :

60dB (120Hz)

Voltage - Input (Max) :

24V

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage Dropout (Max) :

0.5V @ 500mA

Number of Terminations :

4

Published :

1999

Output Type :

FIXED

RoHS Status :

RoHS Compliant
