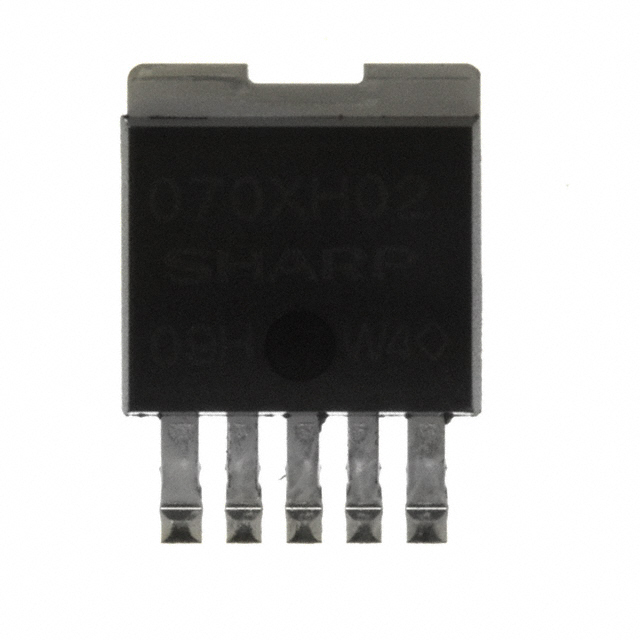

PQ070XH02ZZH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Lead Free :

Lead Free

Terminal Form :

Gull wing

PSRR :

60dB (120Hz)

Number of Regulators :

1

Protection Features :

Over Current, Over Temperature

Number of Functions :

1

Reference Voltage :

1.275V

Operating Temperature :

-40°C~85°C

Current - Quiescent (Iq) :

2mA

Mounting Type :

Surface Mount

Package / Case :

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Voltage Dropout (Max) :

0.5V @ 2A

JESD-609 Code :

e2

Mount :

Surface Mount

Control Features :

Enable

Published :

2001

Max Power Dissipation :

35W

JESD-30 Code :

R-PSSO-G5

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Input Voltage :

2.35V

Qualification Status :

Not Qualified

Output Configuration :

Positive

Output Type :

Adjustable

Peak Reflow Temperature (Cel) :

260

Time@Peak Reflow Temperature-Max (s) :

10

Width :

8.4mm

Packaging :

Tube

Current - Output :

2A

Voltage - Output (Min/Fixed) :

1.5V

Terminal Position :

Single

Output Voltage :

7V

Terminal Finish :

TIN COPPER

RoHS Status :

RoHS Compliant

Input Bias Current :

1mA

Voltage - Input (Max) :

10V

Height Seated (Max) :

4mm

Reach Compliance Code :

Unknown

Dropout Voltage :

500mV

Number of Terminations :

5
