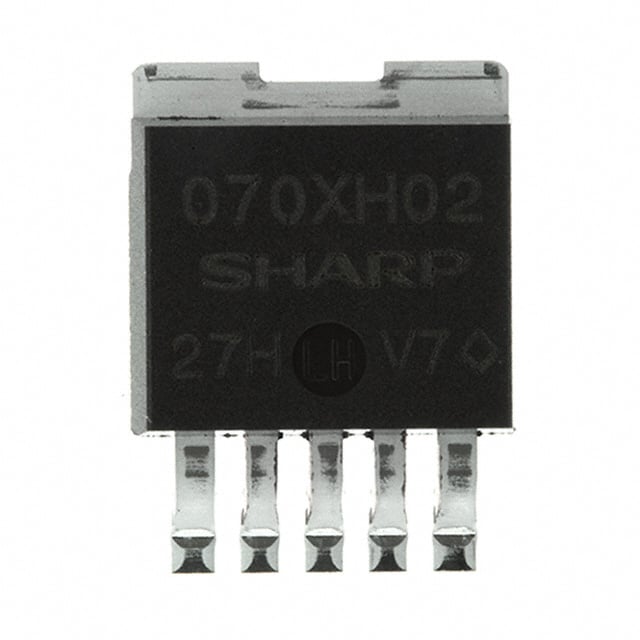

PQ070XH02ZPH

Manufacturer :

Sharp Microelectronics

Product Category :

Voltage Regulators - Linear

Published :

2001

Packaging :

Tape and Reel (TR)

Protection Features :

Over Current, Over Temperature

Voltage - Input (Max) :

10V

Width :

8.4mm

Terminal Finish :

TIN COPPER

Terminal Position :

Single

PSRR :

60dB (120Hz)

Mounting Type :

Surface Mount

Peak Reflow Temperature (Cel) :

260

Output Type :

Adjustable

JESD-609 Code :

e2

Qualification Status :

Not Qualified

Package / Case :

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Operating Temperature :

-40°C~85°C

Current - Output :

2A

JESD-30 Code :

R-PSSO-G5

Max Power Dissipation :

35W

Reach Compliance Code :

Unknown

Number of Regulators :

1

Dropout Voltage :

500mV

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

10

Number of Terminations :

5

Reference Voltage :

1.275V

Mount :

Surface Mount

Output Voltage :

7V

Voltage Dropout (Max) :

0.5V @ 2A

Height Seated (Max) :

4mm

Terminal Form :

Gull wing

RoHS Status :

RoHS Compliant

Voltage - Output (Min/Fixed) :

1.5V

Output Configuration :

Positive

Input Bias Current :

1mA

Min Input Voltage :

2.35V

Control Features :

Enable

Current - Quiescent (Iq) :

2mA
