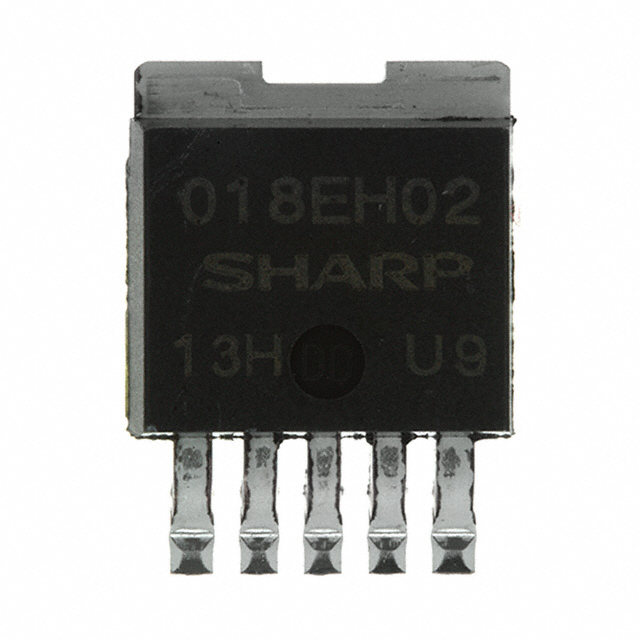

PQ018EH02ZPH
Or copy the link below:
- Mfr.Part #
- PQ018EH02ZPH
- Manufacturer
- Sharp Microelectronics
- Package / Case
- TO-263
- Datasheet
- Download
- Description
- IC REG LINEAR 1.8V 2A TO263
- Stock
- 7,895
- In Stock ：
- 7,895
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Voltage Regulators - Linear
- Max Power Dissipation :
- 35W
- Output Type :
- FIXED
- Max Input Voltage :
- 10V
- JESD-609 Code :
- e2
- Terminal Form :
- Gull wing
- Input Bias Current :
- 1mA
- Number of Terminations :
- 5
- JESD-30 Code :
- R-PSSO-G5
- Package / Case :
- TO-263
- Min Input Voltage :
- 2.35V
- Mount :
- Surface Mount
- Output Voltage 1 :
- 1.8V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Functions :
- 1
- Reach Compliance Code :
- Unknown
- Published :
- 2006
- Lead Free :
- Lead Free
- Packaging :
- Cut Tape (CT)
- Terminal Position :
- Single
- Number of Outputs :
- 1
- Peak Reflow Temperature (Cel) :
- 260
- Min Operating Temperature :
- -40°C
- Terminal Finish :
- TIN COPPER
- Height Seated (Max) :
- 4mm
- Output Current :
- 2A
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Qualification Status :
- Not Qualified
- Output Voltage :
- 1.8V
- Width :
- 8.4mm
- Max Operating Temperature :
- 85°C
- Datasheets
- PQ018EH02ZPH
Fixed PMIC TO-263
PQ018EH02ZPH Overview
The package contains a Cut Tape (CT) case. In TO-263 cases, it is packaged. This gadget has 5 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. Under 85°C degrees, you should use the regulator IC. Temperatures below -40°C are not allowed on the chip.
PQ018EH02ZPH Features
The maximum operating temperature of -40°C
PQ018EH02ZPH Applications
There are a lot of Sharp Microelectronics
PQ018EH02ZPH Linear Voltage Regulators applications.
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
