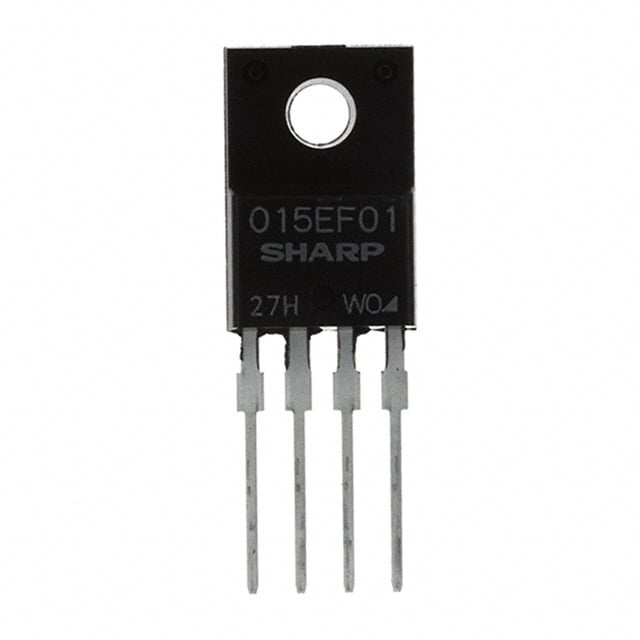

PQ015EF01SZH
Or copy the link below:
- Mfr.Part #
- PQ015EF01SZH
- Manufacturer
- Sharp Microelectronics
- Package / Case
- TO-220-4
- Datasheet
- Download
- Description
- IC REG LINEAR 1.5V 1A TO220-4
- Stock
- 2,874
- In Stock ：
- 2,874
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Voltage Regulators - Linear
- Max Operating Temperature :
- 85°C
- Output Current :
- 1A
- Terminal Position :
- Single
- Mount :
- Through Hole
- Output Voltage 1 :
- 1.5V
- JESD-609 Code :
- e2
- Min Operating Temperature :
- -40°C
- Number of Terminations :
- 4
- Input Bias Current :
- 1mA
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Max Input Voltage :
- 10V
- Max Power Dissipation :
- 15W
- Reach Compliance Code :
- Unknown
- JESD-30 Code :
- R-PSFM-T4
- Lead Free :
- Lead Free
- Package / Case :
- TO-220-4
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Output Type :
- FIXED
- Published :
- 2006
- Number of Outputs :
- 1
- Min Input Voltage :
- 2.35V
- Terminal Finish :
- TIN COPPER
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Qualification Status :
- Not Qualified
- Number of Functions :
- 1
- Dropout Voltage :
- 500mV
- Output Voltage :
- 1.5V
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tube
- Datasheets
- PQ015EF01SZH
Fixed PMIC TO-220-4
PQ015EF01SZH Overview
The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-220-4 case is used. On the Voltage regulator IC, there are 4 terminations that can be connected. This IC Regulator has a type of output called Fixed. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 85°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -40°C.
PQ015EF01SZH Features
500mV dropout voltage
The maximum operating temperature of -40°C
PQ015EF01SZH Applications
There are a lot of Sharp Microelectronics
PQ015EF01SZH Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
