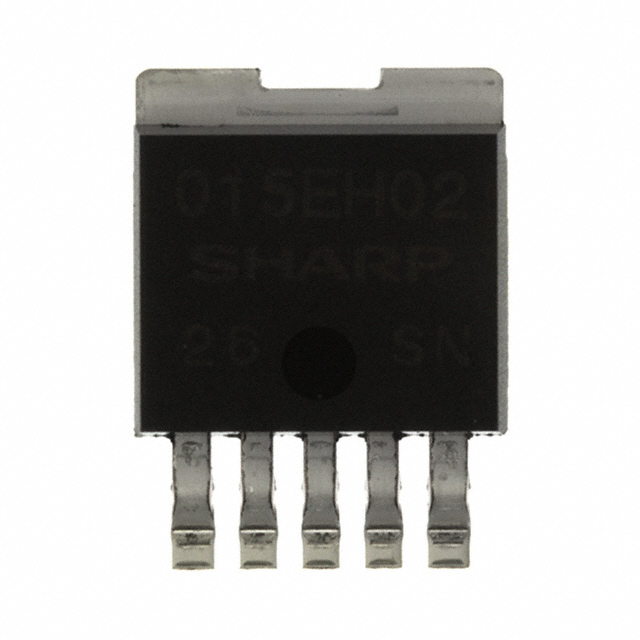

PQ015EH02ZZ
Or copy the link below:
- Mfr.Part #
- PQ015EH02ZZ
- Manufacturer
- Sharp Microelectronics
- Package / Case
- TO-263-6
- Datasheet
- Download
- Description
- IC REG LINEAR 1.5V 2A TO263
- Stock
- 5,724
- In Stock ：
- 5,724
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sharp Microelectronics
- Product Category :
- Voltage Regulators - Linear
- Output Voltage :
- 1.5V
- Package / Case :
- TO-263-6
- Number of Terminations :
- 5
- Output Current :
- 2A
- Input Voltage (Min) :
- 2.35V
- Height Seated (Max) :
- 4mm
- Output Voltage 1 :
- 1.5V
- Packaging :
- Tube
- JESD-30 Code :
- R-PSSO-G5
- Width :
- 8.4mm
- RoHS Status :
- Non-RoHS Compliant
- Number of Regulators :
- 1
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Terminal Form :
- Gull wing
- JESD-609 Code :
- e0
- Reach Compliance Code :
- Unknown
- Mount :
- Surface Mount
- Min Operating Temperature :
- -40°C
- Regulator Type :
- FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
- Number of Functions :
- 1
- Qualification Status :
- Not Qualified
- Published :
- 2001
- Peak Reflow Temperature (Cel) :
- 240
- Lead Free :
- Contains Lead
- Max Operating Temperature :
- 85°C
- Terminal Position :
- Single
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- PQ015EH02ZZ
PQ015EH02ZZ Documents
PMIC TO-263-6
PQ015EH02ZZ Overview
In a Tube case, the IC voltage regulator is delivered. A TO-263-6 case contains the Liner IC. In total, there are 5 terminations on the gadget. In this electrical part, there are 1 regulators that are implemented. In this case, the regulator type is FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR, which corresponds to this voltage regulator IC. When the temperature is below 85°C, you are advised to use the voltage regulator IC. The chip's operating temperature cannot be lowered below -40°C.
PQ015EH02ZZ Features
The maximum operating temperature of -40°C
PQ015EH02ZZ Applications
There are a lot of Sharp Microelectronics
PQ015EH02ZZ Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
