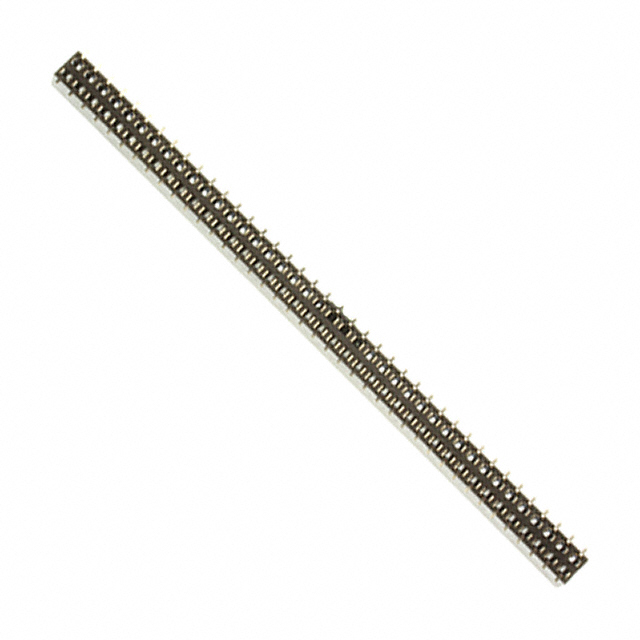

PPTC402KFMS
Or copy the link below:
- Mfr.Part #
- PPTC402KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 80POS 0.1 TIN SMD
- Stock
- 24,700
- In Stock ：
- 24,700
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Width :
- 5mm
- Number of Conductors :
- ONE
- Insulation Resistance :
- 5000000000Ohm
- Lead Free :
- Contains Lead
- Style :
- Board to Board
- Published :
- 2004
- Polarization Key :
- POLARIZED HOUSING
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Shape :
- Square
- Total Number of Contacts :
- 80
- Height :
- 7.1mm
- Insulation Material :
- Polyester
- Fastening Type :
- Push-Pull
- Length :
- 102mm
- Number of Positions :
- 80
- Number Of PCB Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Insulation Color :
- Black
- Number of Rows :
- 2
- Body Breadth :
- 0.197 inch
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Reliability :
- COMMERCIAL
- Mating Contact Pitch :
- 0.1 inch
- Contact Material :
- Phosphor Bronze
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Bulk
- Current Rating (Amps) :
- 3A
- Insulation Height :
- 0.299 7.60mm
- RoHS Status :
- Non-RoHS Compliant
- Operating Temperature :
- -40°C~125°C
- Connector Type :
- Header
- Housing Material :
- Plastic
- Voltage - Rated :
- 250V
- Contact Finish - Mating :
- Tin
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Type :
- Female Socket
- Number of Positions Loaded :
- All
- Datasheets
- PPTC402KFMS
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Tin Polyester 80 Positions Female Socket
PPTC402KFMS Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Bulk case for packaging the product.Surface Mount is used to mount the part.In this case, the device operates at -40°C~125°C Operating Temperature.
PPTC402KFMS Features
PPTC402KFMS Applications
There are a lot of Sullins Connector Solutions
PPTC402KFMS Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
