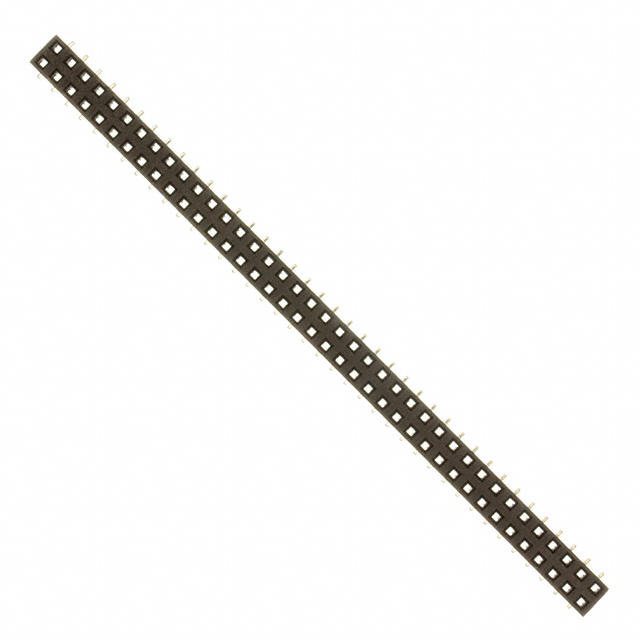

PPTC392KFMS
Or copy the link below:
- Mfr.Part #
- PPTC392KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 78POS 0.1 TIN SMD
- Stock
- 41,666
- In Stock ：
- 41,666
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Mounting Type :
- Surface Mount
- Dielectric Withstanding Voltage :
- 500VAC V
- Reference Standard :
- UL
- Termination :
- Solder
- Insulation Color :
- Black
- Polarization Key :
- POLARIZED HOUSING
- Height :
- 7.1mm
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Plastic
- RoHS Status :
- Non-RoHS Compliant
- Total Number of Contacts :
- 78
- PCB Contact Pattern :
- RECTANGULAR
- Contact Type :
- Female Socket
- Contact Shape :
- Square
- Number Of PCB Rows :
- 2
- Connector Type :
- Header
- Body Breadth :
- 0.197 inch
- Pitch - Mating :
- 0.100 2.54mm
- Published :
- 2004
- Length :
- 99.6mm
- Mating Contact Pitch :
- 0.1 inch
- Contact Material :
- Phosphor Bronze
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~125°C
- Voltage - Rated :
- 250V
- Style :
- Board to Board
- Mount :
- Surface Mount
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Current Rating (Amps) :
- 3A
- Insulation Height :
- 0.299 7.60mm
- Insulation Material :
- Polyester
- Number of Positions :
- 78
- Width :
- 5mm
- Reliability :
- COMMERCIAL
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Tin
- Number of Conductors :
- ONE
- Lead Free :
- Contains Lead
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Datasheets
- PPTC392KFMS
PPTC392KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Tin Polyester 78 Positions Female Socket
PPTC392KFMS Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.The part is mounted by Surface Mount.The device runs in -40°C~125°C Operating Temperature.
PPTC392KFMS Features
PPTC392KFMS Applications
There are a lot of Sullins Connector Solutions
PPTC392KFMS Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
