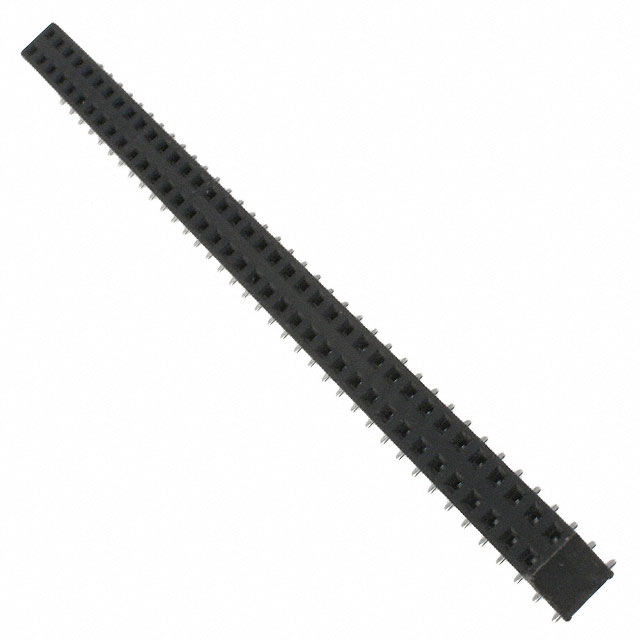

PPTC382KFMS
Or copy the link below:
- Mfr.Part #
- PPTC382KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 76POS 0.1 TIN SMD
- Stock
- 3,662
- In Stock ：
- 3,662
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- Contact Type :
- Female Socket
- Number of Conductors :
- ONE
- Length :
- 97mm
- Width :
- 5mm
- Reference Standard :
- UL
- Fastening Type :
- Push-Pull
- Number of Rows :
- 2
- Height :
- 7.1mm
- RoHS Status :
- Non-RoHS Compliant
- Lead Free :
- Contains Lead
- Mounting Type :
- Surface Mount
- Contact Finish - Mating :
- Tin
- Termination :
- Solder
- Style :
- Board to Board
- Contact Shape :
- Square
- Contact Material :
- Phosphor Bronze
- Insulation Color :
- Black
- Housing Material :
- Plastic
- Polarization Key :
- POLARIZED HOUSING
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Mating :
- 0.100 2.54mm
- Published :
- 2004
- Operating Temperature :
- -40°C~125°C
- Packaging :
- Bulk
- Insulation Height :
- 0.299 7.60mm
- Insulation Material :
- Polyester
- Current Rating (Amps) :
- 3A
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Positions :
- 76
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Resistance :
- 5000000000Ohm
- Number Of PCB Rows :
- 2
- Number of Positions Loaded :
- All
- Mating Contact Pitch :
- 0.1 inch
- Voltage - Rated :
- 250V
- Mount :
- Surface Mount
- Total Number of Contacts :
- 76
- Body Breadth :
- 0.197 inch
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- PPTC382KFMS
PPTC382KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Tin Polyester 76 Positions Female Socket
PPTC382KFMS Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Bulk case is necessary to package the product.Part Surface Mount is mounted to the part.As a result, the device runs at -40°C~125°C Operating Temperature.
PPTC382KFMS Features
PPTC382KFMS Applications
There are a lot of Sullins Connector Solutions
PPTC382KFMS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
