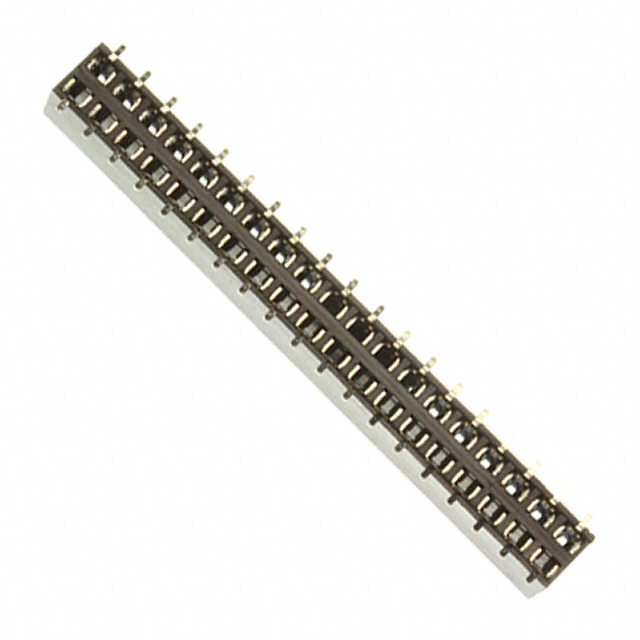

PPTC192KFMS
Or copy the link below:
- Mfr.Part #
- PPTC192KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 38POS 0.1 TIN SMD
- Stock
- 22,456
- In Stock ：
- 22,456
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Positions :
- 38
- Number of Positions Loaded :
- All
- Mating Contact Pitch :
- 0.1 inch
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 2
- Length :
- 48.8mm
- Packaging :
- Bulk
- Lead Free :
- Contains Lead
- Number of Conductors :
- ONE
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Material :
- Polyester
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- Voltage - Rated :
- 250V
- Width :
- 5mm
- Height :
- 7.1mm
- Mounting Type :
- Surface Mount
- Housing Material :
- Plastic
- Contact Finish - Mating :
- Tin
- RoHS Status :
- Non-RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.299 7.60mm
- Insulation Resistance :
- 5000000000Ohm
- Polarization Key :
- POLARIZED HOUSING
- Mount :
- Surface Mount
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Contact Type :
- Female Socket
- Style :
- Board to Board
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Dielectric Withstanding Voltage :
- 500VAC V
- Operating Temperature :
- -40°C~125°C
- Body Breadth :
- 0.197 inch
- Reference Standard :
- UL
- Published :
- 2004
- Current Rating (Amps) :
- 3A
- Total Number of Contacts :
- 38
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number Of PCB Rows :
- 2
- Contact Shape :
- Square
- Datasheets
- PPTC192KFMS
PPTC192KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Tin Polyester 38 Positions Female Socket
PPTC192KFMS Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.The part is mounted by Surface Mount.The device runs in -40°C~125°C Operating Temperature.
PPTC192KFMS Features
PPTC192KFMS Applications
There are a lot of Sullins Connector Solutions
PPTC192KFMS Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
