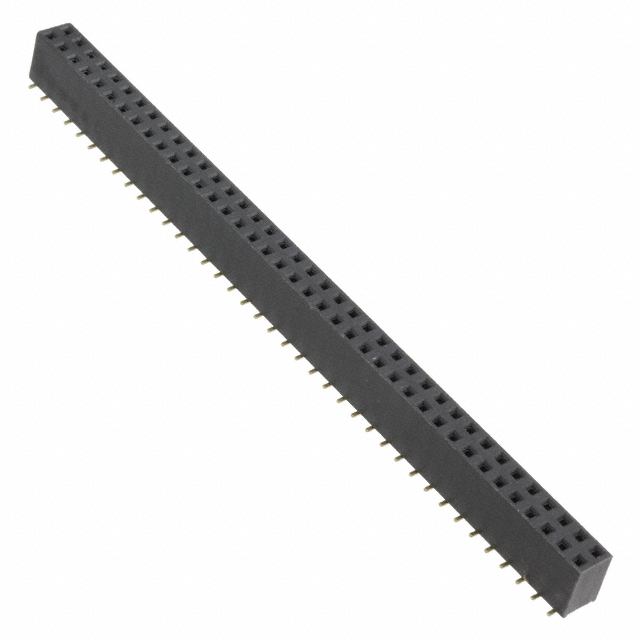

PPPC392KFMS
Or copy the link below:
- Mfr.Part #
- PPPC392KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 78POS 0.1 GOLD SMD
- Stock
- 14,900
- In Stock ：
- 14,900
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Operating Temperature :
- -40°C~125°C
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Length :
- 99.6mm
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Phosphor Bronze
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish - Mating :
- Gold
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish Thickness - Mating :
- Flash
- Contact Type :
- Female Socket
- Mount :
- Surface Mount
- Insulation Resistance :
- 5000000000Ohm
- Insulation Height :
- 0.299 7.60mm
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Material :
- Polyester
- Body Breadth :
- 0.197 inch
- Connector Type :
- Header
- Insulation Color :
- Black
- Reference Standard :
- UL
- Mating Contact Pitch :
- 0.1 inch
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3A
- Voltage - Rated :
- 250V
- Number Of PCB Rows :
- 2
- Housing Material :
- Plastic
- Number of Conductors :
- ONE
- Published :
- 2004
- Number of Positions :
- 78
- Style :
- Board to Board
- Pitch - Mating :
- 0.100 2.54mm
- Height :
- 7.1mm
- Contact Shape :
- Square
- Total Number of Contacts :
- 78
- Reliability :
- COMMERCIAL
- Dielectric Withstanding Voltage :
- 500VAC V
- Fastening Type :
- Push-Pull
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Packaging :
- Bulk
- Lead Free :
- Contains Lead
- Width :
- 5mm
- Number of Rows :
- 2
- Datasheets
- PPPC392KFMS
PPPC392KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 78 Positions Female Socket
PPPC392KFMS Overview
You get it in Header packaging.Mounting type Surface Mount is selected for the device.Packaged in a Bulk case.There's a Surface Mount mount on the part.Device runs in -40°C~125°C operating temperature.
PPPC392KFMS Features
PPPC392KFMS Applications
There are a lot of Sullins Connector Solutions
PPPC392KFMS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
