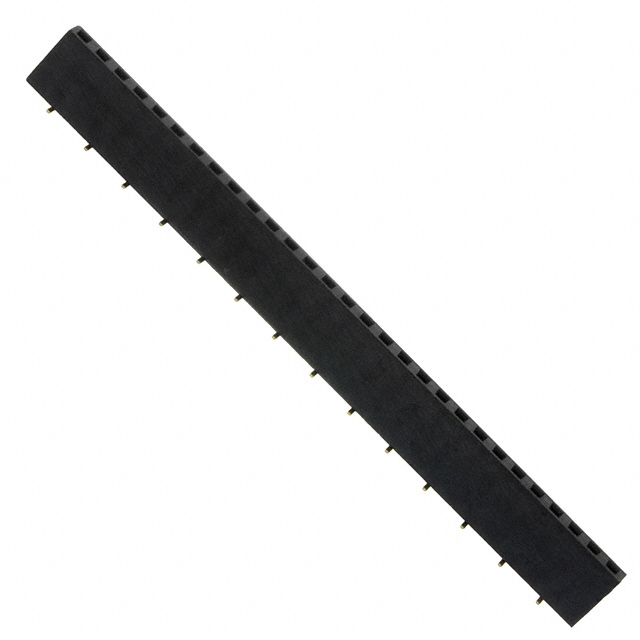

PPPC291KFXC
Or copy the link below:
- Mfr.Part #
- PPPC291KFXC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 29POS 0.1 GOLD SMD
- Stock
- 15,866
- In Stock ：
- 15,866
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Contact Pattern :
- STAGGERED
- Width :
- 2.5mm
- Fastening Type :
- Push-Pull
- Total Number of Contacts :
- 29
- Contact Material :
- Phosphor Bronze
- Dielectric Withstanding Voltage :
- 500VAC V
- Number Of PCB Rows :
- 2
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 20mOhm
- Reference Standard :
- UL
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Operating Temperature :
- -40°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyester
- Number of Rows :
- 1
- Length :
- 73.7mm
- RoHS Status :
- Non-RoHS Compliant
- Published :
- 2004
- Current Rating (Amps) :
- 3A
- Insulation Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Terminal Pitch :
- 5.08mm
- PCB Contact Row Spacing :
- 3.302 mm
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header, Top or Bottom Entry
- Voltage - Rated :
- 250V
- Body Breadth :
- 0.098 inch
- Contact Type :
- Female Socket
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.280 7.10mm
- Style :
- Board to Board
- Contact Finish Thickness - Mating :
- Flash
- Number of Conductors :
- ONE
- Pitch - Mating :
- 0.100 2.54mm
- Lead Free :
- Contains Lead
- Packaging :
- Bulk
- Height :
- 7.1mm
- Mounting Type :
- Surface Mount
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions :
- 29
- Mount :
- Surface Mount
- Housing Material :
- Plastic
- Datasheets
- PPPC291KFXC
PPPC291KFXC Documents
1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 29 Positions Female Socket
PPPC291KFXC Overview
Packaging is in the form of Header, Top or Bottom Entry.This device has a Surface Mount mounting type.An orange Bulk case is used to package the product.There is a mounting hole at Surface Mount.Devices operate at -40°C~105°C operating temperatures.
PPPC291KFXC Features
PPPC291KFXC Applications
There are a lot of Sullins Connector Solutions
PPPC291KFXC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
