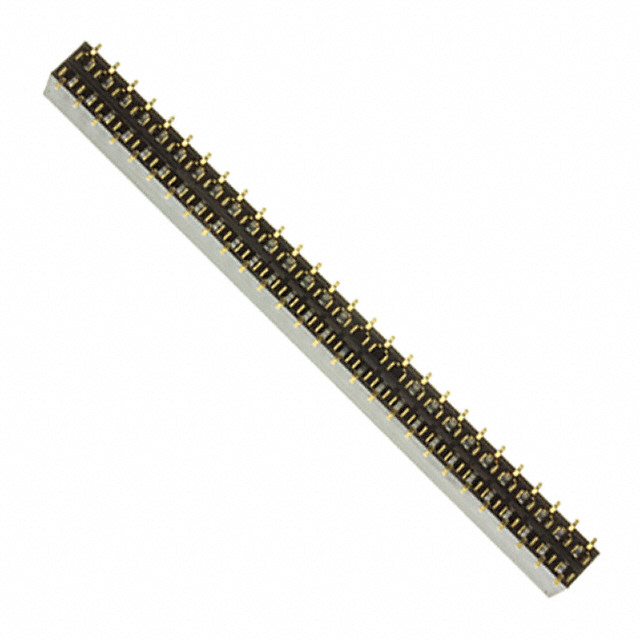

PPPC282KFMS
Or copy the link below:
- Mfr.Part #
- PPPC282KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 56POS 0.1 GOLD SMD
- Stock
- 19,210
- In Stock ：
- 19,210
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Contact Pattern :
- RECTANGULAR
- Published :
- 2004
- Number Of PCB Rows :
- 2
- Insulation Color :
- Black
- Voltage - Rated :
- 250V
- Insulation Resistance :
- 5000000000Ohm
- Fastening Type :
- Push-Pull
- Number of Positions :
- 56
- Housing Material :
- Plastic
- Style :
- Board to Board
- Height :
- 7.1mm
- Current Rating (Amps) :
- 3A
- Width :
- 5mm
- Total Number of Contacts :
- 56
- Connector Type :
- Header
- Reference Standard :
- UL
- Mount :
- Surface Mount
- Operating Temperature :
- -40°C~125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Contact Pitch :
- 0.1 inch
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Mating :
- Flash
- Length :
- 71.6mm
- Body Breadth :
- 0.197 inch
- Contact Finish - Mating :
- Gold
- RoHS Status :
- Non-RoHS Compliant
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Packaging :
- Bulk
- Contact Type :
- Female Socket
- Material Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Lead Free :
- Contains Lead
- Insulation Height :
- 0.299 7.60mm
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Contact Material :
- Phosphor Bronze
- Contact Shape :
- Square
- Polarization Key :
- POLARIZED HOUSING
- Insulation Material :
- Polyester
- Mounting Type :
- Surface Mount
- Datasheets
- PPPC282KFMS
PPPC282KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 56 Positions Female Socket
PPPC282KFMS Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.By Surface Mount, the part is mounted.Operating temperature is set to -40°C~125°C.
PPPC282KFMS Features
PPPC282KFMS Applications
There are a lot of Sullins Connector Solutions
PPPC282KFMS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
