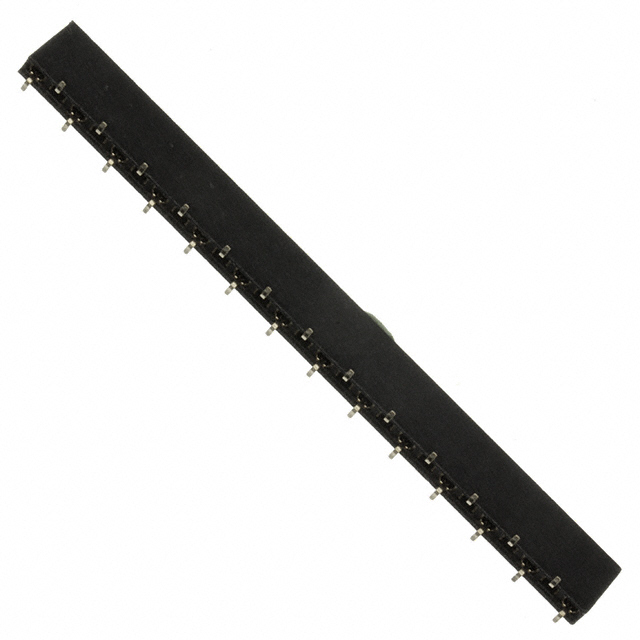

PPPC271KFXC
Or copy the link below:
- Mfr.Part #
- PPPC271KFXC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 27POS 0.1 GOLD SMD
- Stock
- 4,415
- In Stock ：
- 4,415
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Voltage - Rated :
- 250V
- Reliability :
- COMMERCIAL
- Insulation Height :
- 0.280 7.10mm
- Connector Type :
- Header, Top or Bottom Entry
- Housing Material :
- Plastic
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Contact Type :
- Female Socket
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Length :
- 68.6mm
- Number of Conductors :
- ONE
- PCB Contact Row Spacing :
- 3.302 mm
- Insulation Material :
- Polyester
- Termination :
- Solder
- PCB Contact Pattern :
- STAGGERED
- Body Breadth :
- 0.098 inch
- Total Number of Contacts :
- 27
- Lead Free :
- Contains Lead
- Insulation Resistance :
- 5000000000Ohm
- Number of Rows :
- 1
- Fastening Type :
- Push-Pull
- Height :
- 7.1mm
- RoHS Status :
- Non-RoHS Compliant
- Number of Positions :
- 27
- Dielectric Withstanding Voltage :
- 500VAC V
- Published :
- 2004
- Contact Resistance :
- 20mOhm
- Pitch - Mating :
- 0.100 2.54mm
- Polarization Key :
- POLARIZED HOUSING
- Number Of PCB Rows :
- 2
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- Flash
- Mounting Type :
- Surface Mount
- Contact Finish - Mating :
- Gold
- Style :
- Board to Board
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Mount :
- Surface Mount
- Current Rating (Amps) :
- 3A
- Width :
- 2.5mm
- Operating Temperature :
- -40°C~105°C
- Insulation Color :
- Black
- Terminal Pitch :
- 5.08mm
- Datasheets
- PPPC271KFXC
PPPC271KFXC Documents
1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 27 Positions Female Socket
PPPC271KFXC Overview
Currently, it is packaged in Header, Top or Bottom Entry.The mounting type of the device is Surface Mount.A Bulk case is used to package the product.Surface Mount represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
PPPC271KFXC Features
PPPC271KFXC Applications
There are a lot of Sullins Connector Solutions
PPPC271KFXC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
