PPPC261KFXC

Share

Or copy the link below:

Mfr.Part #
PPPC261KFXC
Manufacturer
Sullins Connector Solutions
Package / Case
Datasheet
Download
Description
CONN HDR 26POS 0.1 GOLD SMD
Stock
15,814
In Stock :
15,814

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Sullins Connector Solutions
Product Category :
Headers, Receptacles, Female Sockets
Contact Material :
Phosphor Bronze
Current Rating (Amps) :
3A
Contact Resistance :
20mOhm
Length :
66mm
Dielectric Withstanding Voltage :
500VAC V
Body Breadth :
0.098 inch
Published :
2004
Number of Positions Loaded :
All
Number Of PCB Rows :
2
Contact Type :
Female Socket
Height :
7.1mm
Number of Conductors :
ONE
Mounting Type :
Surface Mount
Insulation Height :
0.280 7.10mm
Termination :
Solder
Reliability :
COMMERCIAL
Connector Type :
Header, Top or Bottom Entry
Lead Free :
Contains Lead
Style :
Board to Board
Reference Standard :
UL
Insulation Material :
Polyester
Housing Material :
Plastic
Material Flammability Rating :
UL94 V-0
Number of Rows :
1
Total Number of Contacts :
26
Number of Positions :
26
Width :
2.5mm
Contact Finish Thickness - Mating :
Flash
RoHS Status :
Non-RoHS Compliant
PCB Contact Row Spacing :
3.302 mm
Insulation Color :
Black
Contact Shape :
Square
Operating Temperature :
-40°C~105°C
Polarization Key :
POLARIZED HOUSING
Packaging :
Bulk
Contact Finish - Mating :
Gold
PCB Contact Pattern :
STAGGERED
Fastening Type :
Push-Pull
Pitch - Mating :
0.100 2.54mm
Terminal Pitch :
5.08mm
Mount :
Surface Mount
Voltage - Rated :
250V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Insulation Resistance :
5000000000Ohm
Introducing Headers, Receptacles, Female Sockets Sullins Connector Solutions PPPC261KFXC from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Operating Temperature:-40°C~105°C, PPPC261KFXC pinout, PPPC261KFXC datasheet PDF, PPPC261KFXC amp .Beyond Headers, Receptacles, Female Sockets Sullins Connector Solutions PPPC261KFXC ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

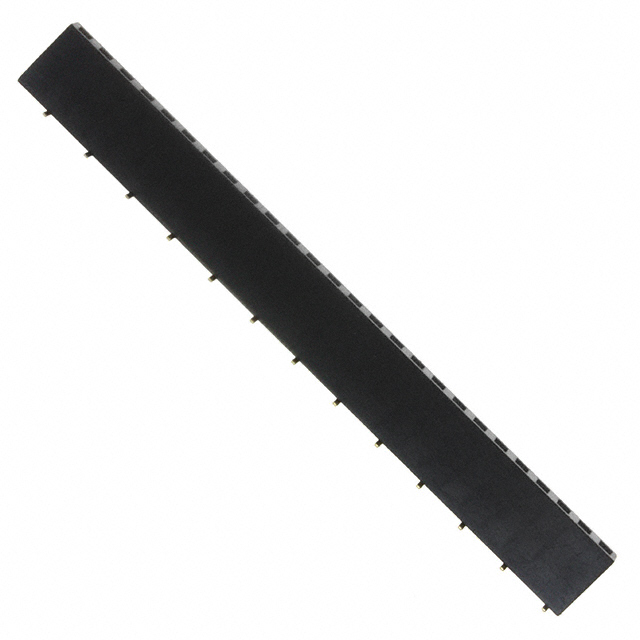

Sullins Connector Solutions PPPC261KFXC


1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 26 Positions Female Socket

PPPC261KFXC Overview


Packaging is in the form of Header, Top or Bottom Entry.This device has a Surface Mount mounting type.An orange Bulk case is used to package the product.There is a mounting hole at Surface Mount.Devices operate at -40°C~105°C operating temperatures.

PPPC261KFXC Features




PPPC261KFXC Applications


There are a lot of Sullins Connector Solutions
PPPC261KFXC Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
