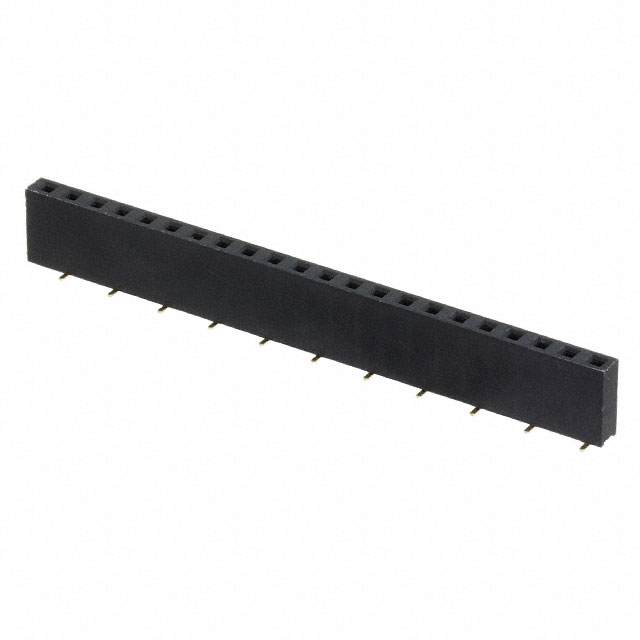

PPPC221KFXC
Or copy the link below:
- Mfr.Part #
- PPPC221KFXC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 22POS 0.1 GOLD SMD
- Stock
- 12,648
- In Stock ：
- 12,648
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Pitch - Mating :
- 0.100 2.54mm
- Height :
- 7.1mm
- Number of Positions Loaded :
- All
- Contact Type :
- Female Socket
- Number of Conductors :
- ONE
- Voltage - Rated :
- 250V
- Contact Finish Thickness - Mating :
- Flash
- Length :
- 55.9mm
- PCB Contact Pattern :
- STAGGERED
- Published :
- 2004
- Number of Rows :
- 1
- Housing Material :
- Plastic
- Current Rating (Amps) :
- 3A
- Insulation Height :
- 0.280 7.10mm
- Contact Shape :
- Square
- PCB Contact Row Spacing :
- 3.302 mm
- Insulation Material :
- Polyester
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Material :
- Phosphor Bronze
- Fastening Type :
- Push-Pull
- Body Breadth :
- 0.098 inch
- Contact Finish - Mating :
- Gold
- Number Of PCB Rows :
- 2
- Mount :
- Surface Mount
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header, Top or Bottom Entry
- Operating Temperature :
- -40°C~105°C
- Packaging :
- Bulk
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- RoHS Status :
- Non-RoHS Compliant
- Width :
- 2.5mm
- Mounting Type :
- Surface Mount
- Contact Resistance :
- 20mOhm
- Reference Standard :
- UL
- Terminal Pitch :
- 5.08mm
- Polarization Key :
- POLARIZED HOUSING
- Lead Free :
- Contains Lead
- Reliability :
- COMMERCIAL
- Style :
- Board to Board
- Number of Positions :
- 22
- Insulation Color :
- Black
- Total Number of Contacts :
- 22
- Datasheets
- PPPC221KFXC
PPPC221KFXC Documents
1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 22 Positions Female Socket
PPPC221KFXC Overview
Packaging for this item is Header, Top or Bottom Entry.There is a mounting type of Surface Mount for this device.It is necessary to use a Bulk case for packaging the product.Surface Mount is used to mount the part.In this case, the device operates at -40°C~105°C Operating Temperature.
PPPC221KFXC Features
PPPC221KFXC Applications
There are a lot of Sullins Connector Solutions
PPPC221KFXC Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
