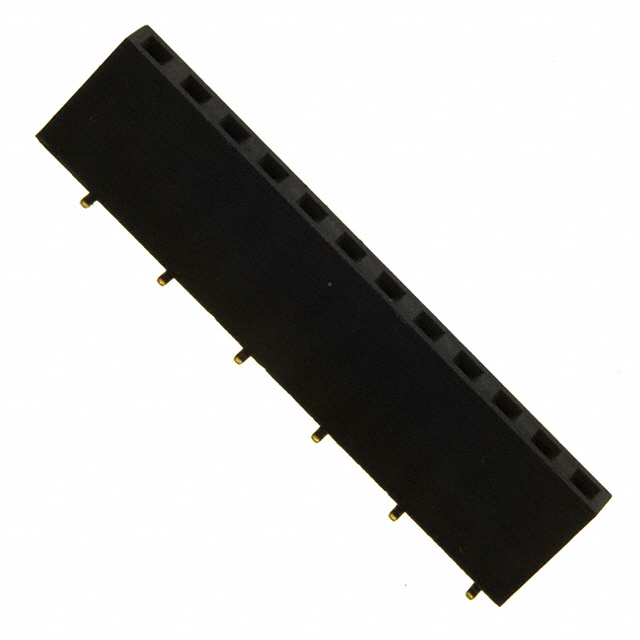

PPPC121KFXC
Or copy the link below:
- Mfr.Part #
- PPPC121KFXC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 12POS 0.1 GOLD SMD
- Stock
- 41,822
- In Stock ：
- 41,822
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Body Breadth :
- 0.098 inch
- Mount :
- Surface Mount
- Reliability :
- COMMERCIAL
- Published :
- 2004
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Number of Positions Loaded :
- All
- Lead Free :
- Contains Lead
- Contact Finish - Mating :
- Gold
- Height :
- 7.1mm
- Number Of PCB Rows :
- 2
- Current Rating (Amps) :
- 3A
- Length :
- 30.5mm
- Insulation Color :
- Black
- Width :
- 2.5mm
- Total Number of Contacts :
- 12
- Contact Shape :
- Square
- PCB Contact Row Spacing :
- 3.302 mm
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Pitch :
- 5.08mm
- Contact Finish Thickness - Mating :
- Flash
- Reference Standard :
- UL
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Resistance :
- 5000000000Ohm
- Voltage - Rated :
- 250V
- Insulation Height :
- 0.280 7.10mm
- Housing Material :
- Plastic
- Number of Conductors :
- ONE
- Mounting Type :
- Surface Mount
- Insulation Material :
- Polyester
- Contact Type :
- Female Socket
- Number of Rows :
- 1
- Contact Resistance :
- 20mOhm
- Operating Temperature :
- -40°C~105°C
- Connector Type :
- Header, Top or Bottom Entry
- Contact Material :
- Phosphor Bronze
- PCB Contact Pattern :
- STAGGERED
- Style :
- Board to Board
- Number of Positions :
- 12
- RoHS Status :
- Non-RoHS Compliant
- Termination :
- Solder
- Polarization Key :
- POLARIZED HOUSING
- Datasheets
- PPPC121KFXC
PPPC121KFXC Documents
1 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 12 Positions Female Socket
PPPC121KFXC Overview
A Header, Top or Bottom Entry package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Bulk case.Surface Mount mounts the part.There is no operating temperature for the device.
PPPC121KFXC Features
PPPC121KFXC Applications
There are a lot of Sullins Connector Solutions
PPPC121KFXC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
