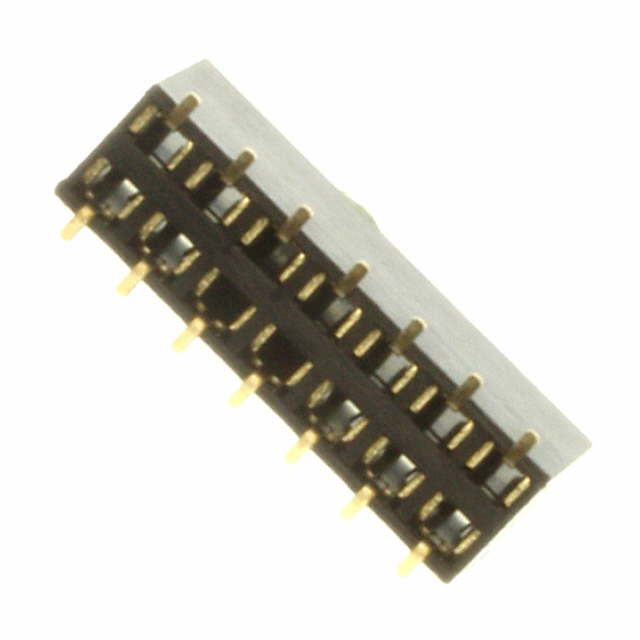

PPPC072KFMS
- Mfr.Part #
- PPPC072KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 14POS 0.1 GOLD SMD
- Stock
- 12,679
- In Stock :
- 12,679
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Type :
- Female Socket
- Fastening Type :
- Push-Pull
- Housing Material :
- Plastic
- Mounting Type :
- Surface Mount
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3A
- Width :
- 5mm
- Style :
- Board to Board
- Published :
- 2004
- Number Of PCB Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Contains Lead
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Polyester
- Connector Type :
- Header
- Mount :
- Surface Mount
- Number of Positions :
- 14
- RoHS Status :
- Non-RoHS Compliant
- Insulation Resistance :
- 5000000000Ohm
- Contact Material :
- Phosphor Bronze
- Mating Contact Pitch :
- 0.1 inch
- Number of Positions Loaded :
- All
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 14
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Insulation Color :
- Black
- Contact Shape :
- Square
- Length :
- 18.3mm
- Body Breadth :
- 0.197 inch
- Contact Finish Thickness - Mating :
- Flash
- Packaging :
- Bulk
- Height :
- 7.1mm
- Number of Rows :
- 2
- Pitch - Mating :
- 0.100 2.54mm
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated :
- 250V
- Polarization Key :
- POLARIZED HOUSING
- Dielectric Withstanding Voltage :
- 500VAC V
- Operating Temperature :
- -40°C~125°C
- Termination :
- Solder
- Insulation Height :
- 0.299 7.60mm
- Reference Standard :
- UL
- Datasheets
- PPPC072KFMS
PPPC072KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 14 Positions Female Socket
PPPC072KFMS Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.The part is mounted by Surface Mount.The device runs in -40°C~125°C Operating Temperature.
PPPC072KFMS Features
PPPC072KFMS Applications
There are a lot of Sullins Connector Solutions
PPPC072KFMS Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
