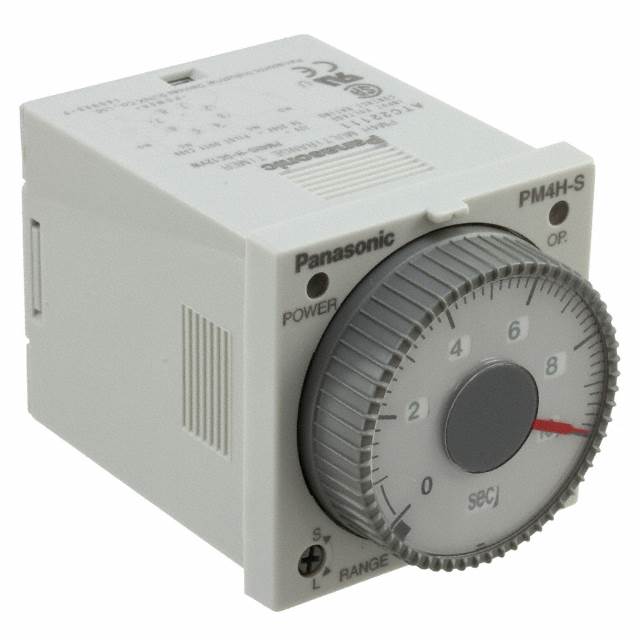

PM4HS-H-DC12VW

Manufacturer :

Panasonic

Product Category :

Time Delay Relays

Number of Pins :

8

Delay Time :

0.1 Sec ~ 500 Hrs

Relay Type :

Mechanical Relay

Depth :

48mm

Length :

48mm

Timing Initiate Method :

Input Voltage

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Circuit :

DPDT (2 Form C)

Operating Supply Voltage :

12V

Max Current Rating :

5A

Series :

PM4H

Factory Lead Time :

12 Weeks

Voltage - Supply :

12VDC

Contact Material :

Silver

Contact Rating @ Voltage :

5A @ 250VAC

RoHS Status :

RoHS Compliant

Termination :

Connector

Min Operating Temperature :

-10°C

Number of Contacts :

2

Coil Voltage (DC) :

12V

Termination Style :

Plug In, 8 Pin (Octal)

Published :

2008

Max Operating Temperature :

50°C

Mounting Type :

Socketable

Mount :

Flush, Plug-In, Socket

Timing Adjustment Method :

Hand Dial

Throw Configuration :

DPDT

Width :

72.5mm

Function :

On-Delay
