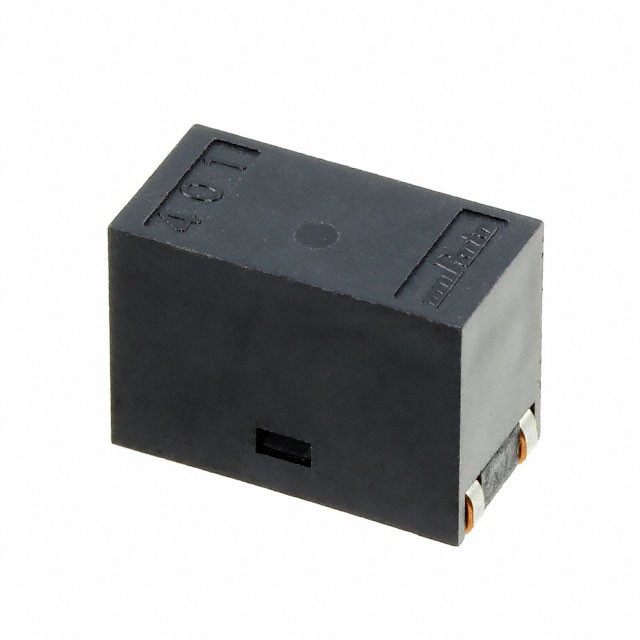

PLT10HH401100PNL
Or copy the link below:
- Mfr.Part #
- PLT10HH401100PNL
- Manufacturer
- Murata Electronics
- Package / Case
- Vertical, 4 PC Pad
- Datasheet
- Download
- Description
- CMC 10A 2LN 400 OHM SMD AEC-Q200
- Stock
- 1,502
- In Stock ：
- 1,502
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Murata Electronics
- Product Category :
- Common Mode Chokes
- Series :
- PLT10H
- Height :
- 9.398mm
- Width :
- 6.6mm
- Operating Temperature :
- -55°C~125°C
- Max DC Current :
- 10A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Size / Dimension :
- 0.508Lx0.358W 12.90mmx9.10mm
- Package / Case :
- Vertical, 4 PC Pad
- Test Frequency :
- 10MHz
- Voltage - Rated DC :
- 100V
- Packaging :
- Cut Tape (CT)
- Depth :
- 6.8mm
- Impedance @ Frequency :
- 400Ohm @ 10MHz
- ECCN Code :
- EAR99
- Inductance :
- 6 mH
- Termination :
- SMD/SMT
- Number of Functions :
- 2
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 1 month ago)
- Ratings :
- AEC-Q200
- Impedance :
- 400Ohm
- Mount :
- Surface Mount
- Filter Type :
- Power Line
- Mounting Type :
- Surface Mount
- DC Resistance (DCR) (Max) :
- 4.1mOhm
- RoHS Status :
- ROHS3 Compliant
- DC Current :
- 10A
- Factory Lead Time :
- 9 Weeks
- Insulation Resistance-Min :
- 10MOhm
- HTS Code :
- 8504.50.80.00
- Number of Lines :
- 2
- Datasheets
- PLT10HH401100PNL
