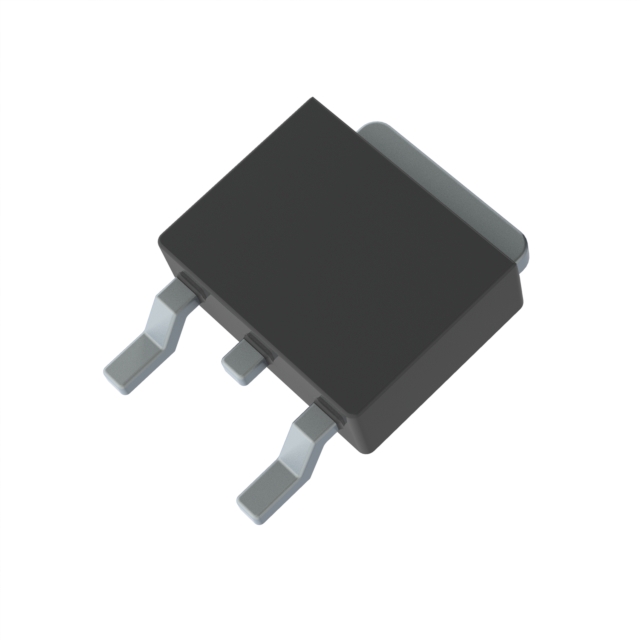

PJMD390N65EC_L2_00001

Manufacturer :

PANJIT

Product Category :

Transistors - FETs, MOSFETs - Single

FET Type :

N-Channel

Power Dissipation (Max) :

87.5W (Tc)

Mounting Type :

Surface Mount

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Brand :

Panjit

Series :

650V SJ MOSFET

Gate Charge (Qg) (Max) @ Vgs :

19 nC @ 10 V

Drive Voltage (Max Rds On, Min Rds On) :

10V

Drain to Source Voltage (Vdss) :

650 V

Manufacturer :

Panjit

Packaging :

Reel

RoHS :

Non-Compliant

Current - Continuous Drain (Id) @ 25°C :

10A (Tc)

Vgs(th) (Max) @ Id :

4V @ 250µA

Product Status :

Active

Input Capacitance (Ciss) (Max) @ Vds :

726 pF @ 400 V

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Vgs (Max) :

±30V

FET Feature :

-

Technology :

MOSFET (Metal Oxide)

Subcategory :

MOSFETs

Supplier Device Package :

TO-252AA

Operating Temperature :

-55°C ~ 150°C (TJ)

Product Type :

MOSFET

Rds On (Max) @ Id, Vgs :

390mOhm @ 5A, 10V

Product Category :

MOSFET
