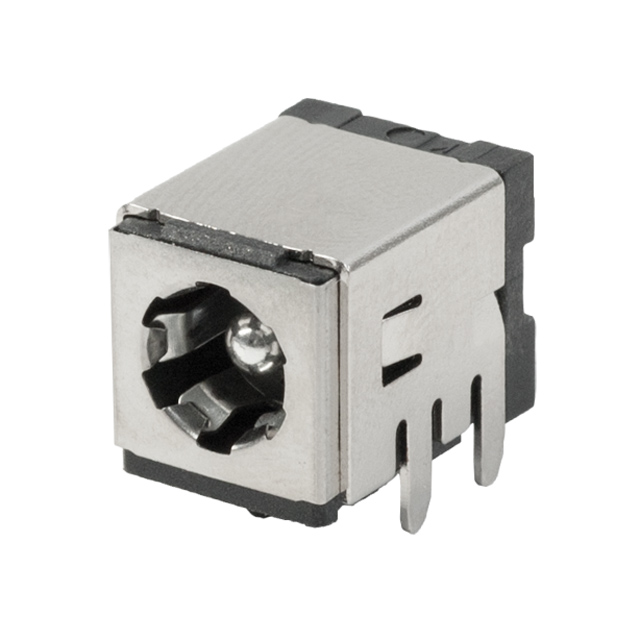

PJ-082BH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Published :

2015

Feature :

Board Guide

Current Rating :

10A

Mounting Type :

Through Hole, Right Angle

Housing Material :

Polyamide (PA6T), Nylon 6T

Max Operating Temperature :

85°C

Min Operating Temperature :

-25°C

Operating Temperature :

-25°C~85°C

Mount :

Through Hole

Body Color :

Black

Actual Diameter :

0.098 (2.50mm ID), 0.256 (6.50mm OD)

Height :

10.2mm

Lead Free :

Lead Free

Number of Conductors :

2

RoHS Status :

RoHS Compliant

Orientation :

Horizontal

Gender :

Male

Material Flammability Rating :

UL94 V-0

Internal Switch(s) :

Does Not Contain Switch

Color :

Black

Connector Type :

JACK

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Factory Lead Time :

11 Weeks

Contact Material :

Brass, Copper Alloy

Shielding :

Shielded

Termination :

Solder

Voltage - Rated :

24VDC

Current Rating (Amps) :

10A

Housing Color :

Black

Contact Plating :

Silver

Mating Length/Depth :

0.324 8.23mm

Contact Material - Plating :

Silver

Number of Contacts :

2

Packaging :

Cut Tape (CT)
