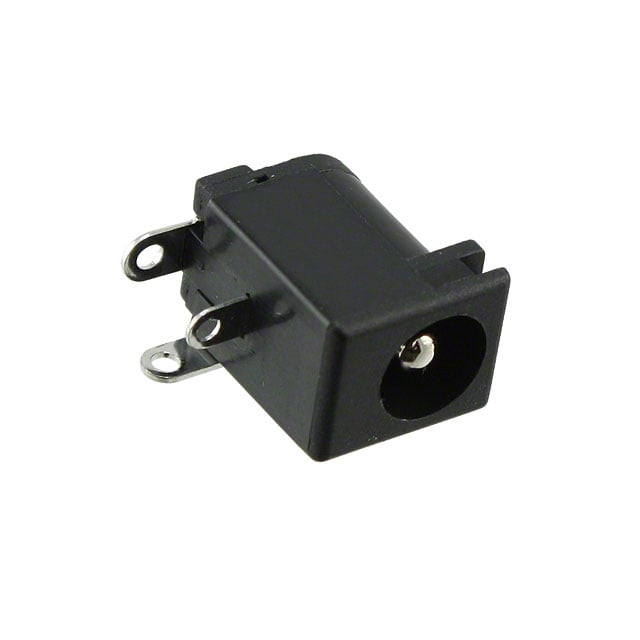

PJ-002B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Flammability Rating :

UL94 V-0

Mount :

Through Hole

Shielding :

Unshielded

Gender :

Male

Contact Material :

Brass, Copper Alloy

Number of Conductors :

2

Packaging :

Bulk

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Min Operating Temperature :

-25°C

Contact Plating :

Nickel

Insulation Resistance :

100MOhm

Diameter :

2.5mm

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Orientation :

Horizontal

Current Rating :

2.5A

Actual Diameter :

0.098 (2.50mm ID), 0.256 (6.50mm OD)

Contact Material - Plating :

Silver

Current Rating (Amps) :

2.5A

Published :

2011

Operating Temperature :

-25°C~85°C

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Housing Color :

Black

Connector Type :

JACK

Max Operating Temperature :

85°C

Termination :

Solder Eyelet(s)

Body Color :

Black

Material Flammability Rating :

UL94 V-0

Color :

Black

Internal Switch(s) :

Single Switch, Normally Closed

RoHS Status :

RoHS Compliant

Voltage - Rated :

24VDC

Mounting Type :

Through Hole, Right Angle

Housing Material :

Polybutylene Terephthalate (PBT)

Mating Length/Depth :

0.354 9.00mm

Factory Lead Time :

11 Weeks
