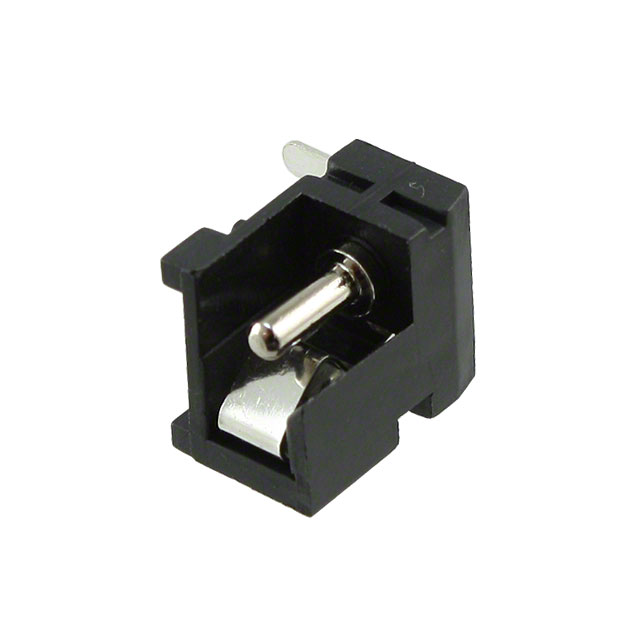

PJ-003A
Or copy the link below:
- Mfr.Part #
- PJ-003A
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN POWER JACK 2.1MM ID SOLDER
- Stock
- 13,521
- In Stock ：
- 13,521
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Internal Switch(s) :
- Single Switch, Normally Closed
- Diameter :
- 2.1mm
- Operating Temperature :
- -25°C~85°C
- Voltage - Rated :
- 24VDC
- RoHS Status :
- RoHS Compliant
- Orientation :
- Horizontal
- Body Color :
- Black
- Contact Material :
- Brass, Copper Alloy
- Gender :
- Male
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Color :
- Black
- Mount :
- Through Hole
- Mounting Type :
- Through Hole, Right Angle
- Shielding :
- Unshielded
- Contact Gender :
- Male
- Lead Free :
- Lead Free
- Current Rating :
- 2.5A
- Number of Conductors :
- 2
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 2.5A
- Contact Material - Plating :
- Tin
- Housing Color :
- Black
- Insulation Resistance :
- 100MOhm
- Connector Type :
- JACK
- Min Operating Temperature :
- -25°C
- Published :
- 2011
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Packaging :
- Bulk
- Actual Diameter :
- 0.079 (2.00mm ID), 0.217 (5.50mm OD)
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Nickel
- Industry Recognized Mating Diameter :
- 2.10mm ID (0.083), 5.50mm OD (0.217)
- Max Operating Temperature :
- 85°C
- Mating Length/Depth :
- 0.256 6.50mm
- Factory Lead Time :
- 11 Weeks
- Datasheets
- PJ-003A
