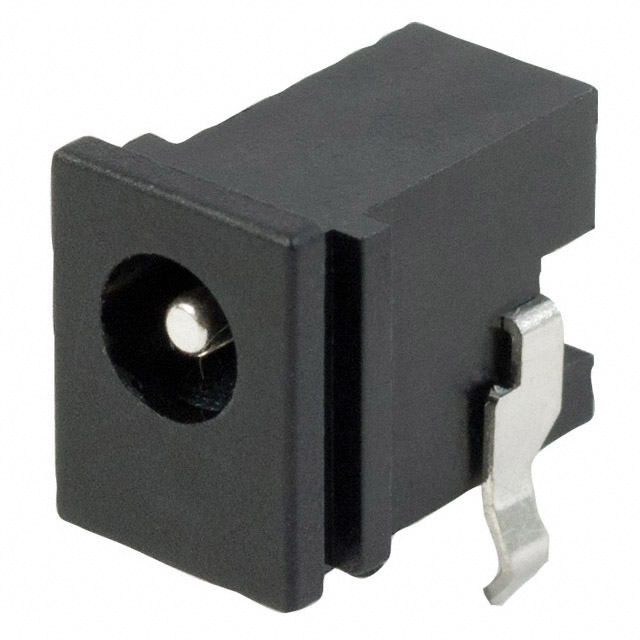

PJ-073

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Orientation :

Horizontal

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Industry Recognized Mating Diameter :

1.70mm ID (0.067), 4.00mm OD (0.157) EIAJ-2

Mating Length/Depth :

0.335 8.50mm

Insulation Resistance :

100MOhm

Contact Gender :

Male

Current Rating :

2.5A

Shielding :

Shielded

Termination :

Kinked Pin

Gender :

Male

Actual Diameter :

0.067 (1.70mm ID), 0.157 (4.00mm OD)

Contact Material :

Brass, Copper Alloy

Operating Temperature :

-25°C~85°C

Mounting Type :

Through Hole, Right Angle

Flammability Rating :

UL94 V-0

Connector Type :

JACK

Lead Free :

Lead Free

Body Color :

Black

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

11 Weeks

Feature :

Board Guide

Housing Color :

Black

Max Operating Temperature :

85°C

Contact Material - Plating :

Silver

Internal Switch(s) :

Single Switch, Normally Closed

Mount :

Through Hole

Packaging :

Bulk

Min Operating Temperature :

-25°C

RoHS Status :

RoHS Compliant

Housing Material :

Polybutylene Terephthalate (PBT)

Published :

2014

Voltage - Rated :

24VDC

Contact Plating :

Silver

Current Rating (Amps) :

2.5A

Number of Conductors :

2

Color :

Black
