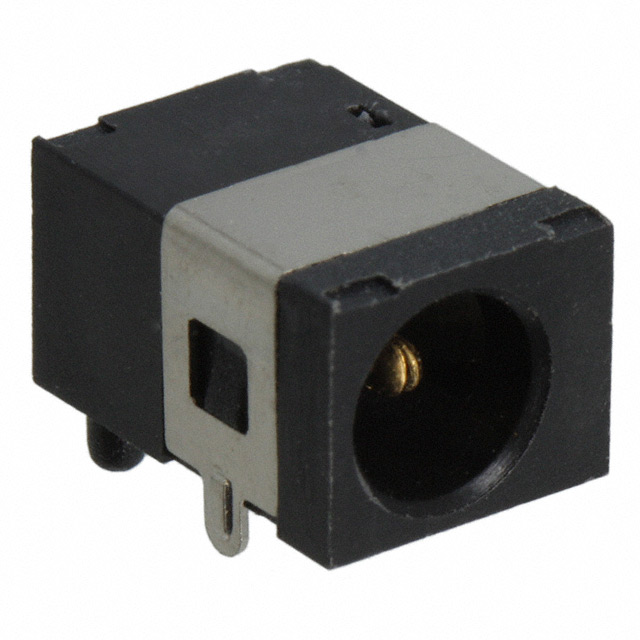

PJ-072C-SMT-TR

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Mounting Type :

Surface Mount, Right Angle

Industry Recognized Mating Diameter :

1.00mm ID (0.039), 3.40mm OD (0.134)

Feature :

Board Guide

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Number of Conductors :

2

Published :

2016

Insulation Resistance :

100MOhm

Internal Switch(s) :

Does Not Contain Switch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Material Flammability Rating :

UL94 V-0

Connector Type :

JACK

Mount :

Surface Mount

Factory Lead Time :

11 Weeks

Flammability Rating :

UL94 V-0

Current Rating (Amps) :

2A

Housing Material :

Polyamide (PA6T), Nylon 6T

Orientation :

Horizontal

Packaging :

Tape and Reel (TR)

Min Operating Temperature :

-25°C

Gender :

Male

Contact Material - Plating :

Gold

RoHS Status :

RoHS Compliant

Mating Length/Depth :

0.236 6.00mm

Operating Temperature :

-25°C~85°C

Contact Gender :

Male

Package / Case :

SMD/SMT

Body Color :

Black

Shielding :

Shielded

Voltage - Rated :

24VDC

Contact Material :

Brass, Copper Alloy

Termination :

Solder

Max Operating Temperature :

85°C

Housing Color :

Black

Contact Plating :

Gold

Actual Diameter :

0.039 (1.00mm ID), 0.142 (3.60mm OD)

Current Rating :

2A
