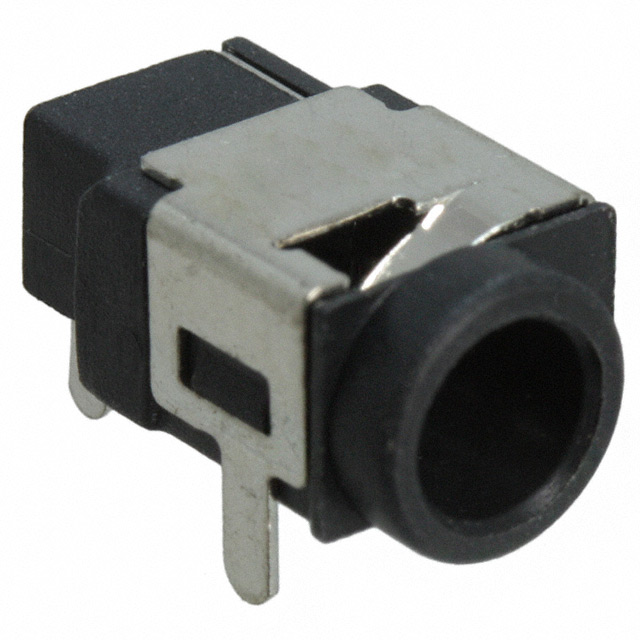

PJ-071
Or copy the link below:
- Mfr.Part #
- PJ-071
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 0.9X3.2MM SOLDER
- Stock
- 2,970
- In Stock ：
- 2,970
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Current Rating (Amps) :
- 2A
- Number of Conductors :
- 3
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Connector Type :
- JACK
- Contact Gender :
- Male
- Max Operating Temperature :
- 85°C
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Guide
- Orientation :
- Horizontal
- Lead Free :
- Lead Free
- Industry Recognized Mating Diameter :
- 0.90mm ID (0.035), 3.20mm OD (0.126)
- Voltage - Rated :
- 24VDC
- Factory Lead Time :
- 11 Weeks
- Number of Contacts :
- 3
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass, Copper Alloy
- Body Color :
- Black
- Color :
- Black
- Height :
- 4.4mm
- Min Operating Temperature :
- -25°C
- Operating Temperature :
- -25°C~85°C
- Mount :
- Through Hole
- Current Rating :
- 2A
- Housing Color :
- Black
- Shielding :
- Shielded
- Termination :
- Solder
- Internal Switch(s) :
- Does Not Contain Switch
- Published :
- 2014
- Insulation Resistance :
- 100MOhm
- Mating Length/Depth :
- 0.276 7.00mm
- Actual Diameter :
- 0.031 (0.80mm ID), 0.132 (3.35mm OD)
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Bulk
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Contact Material - Plating :
- Tin
- Datasheets
- PJ-071
