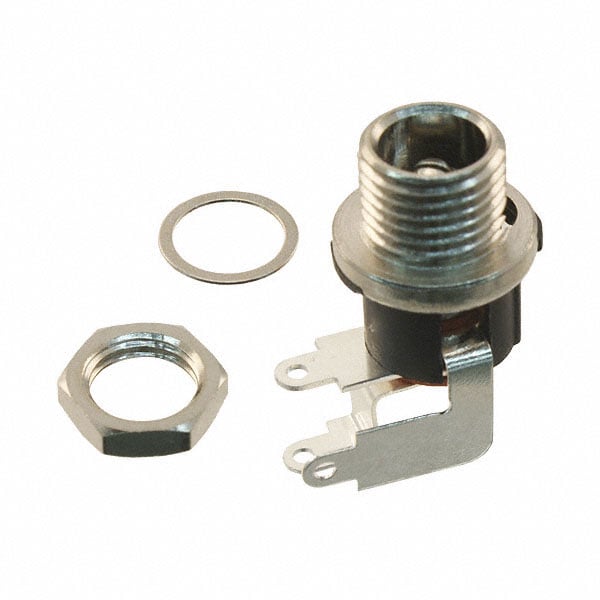

PJ-067B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Connector Type :

JACK

Material Flammability Rating :

UL94 V-0

Orientation :

Horizontal

Factory Lead Time :

11 Weeks

Thread Size :

5/16-32

Body Color :

Black

Max Operating Temperature :

70°C

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Current Rating (Amps) :

5A

Mounting Feature :

Bulkhead - Front Side Nut

Mount :

Bulkhead, Panel, Through Hole

Body Material :

Brass

Actual Diameter :

0.098 (2.50mm ID), 0.224 (5.70mm OD)

Shielding :

Unshielded

Internal Switch(s) :

Single Switch, Normally Closed

Contact Material :

Brass, Phosphor Bronze

Voltage - Rated :

24VDC

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Housing Material :

Polybutylene Terephthalate (PBT)

Published :

2016

Feature :

Mounting Hardware, Thread Lock

Mating Length/Depth :

0.331 8.40mm

Housing Color :

Black

Contact Material - Plating :

Silver

Min Operating Temperature :

-25°C

Contact Plating :

Nickel, Silver

Insulation Resistance :

100MOhm

Contact Gender :

Male

Mounting Type :

Panel Mount, Through Hole, Right Angle

Termination :

Solder Eyelet(s)

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Operating Temperature :

-25°C~70°C

Current Rating :

5A

Packaging :

Bulk

Gender :

Male

Number of Conductors :

2

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Color :

Black
