PJ-067A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Includes :

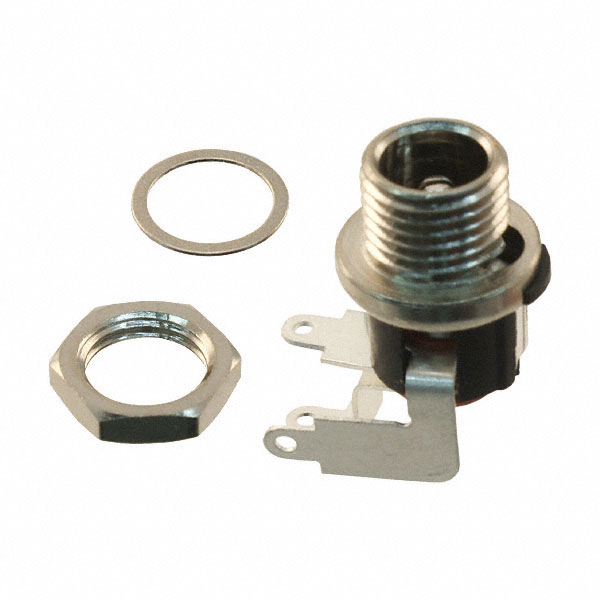

3 pcs - 1 Connector, 1 Nut, 1 Washer

Operating Temperature :

-25°C~70°C

Mounting Feature :

Bulkhead - Front Side Nut

Feature :

Mounting Hardware, Thread Lock

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Material :

Brass, Phosphor Bronze

Current Rating :

5A

Mounting Type :

Panel Mount, Through Hole, Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Male

Mating Length/Depth :

0.331 8.40mm

Insulation Resistance :

100MOhm

Color :

Black

Thread Size :

5/16-32

Current Rating (Amps) :

5A

Termination :

Solder Eyelet(s)

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Contact Material - Plating :

Silver

Connector Type :

JACK

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Mount :

Bulkhead, Panel, Through Hole

Internal Switch(s) :

Single Switch, Normally Closed

Voltage - Rated :

24VDC

Housing Color :

Black

Shielding :

Unshielded

Actual Diameter :

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Min Operating Temperature :

-25°C

Material Flammability Rating :

UL94 V-0

Body Material :

Brass

Orientation :

Horizontal

Contact Plating :

Nickel, Silver

Packaging :

Bulk

Body Color :

Black

Factory Lead Time :

11 Weeks

Number of Conductors :

2

Max Operating Temperature :

70°C

Contact Gender :

Male

Published :

2015

Number of Positions/Contacts :

2 Conductors, 3 Contacts
