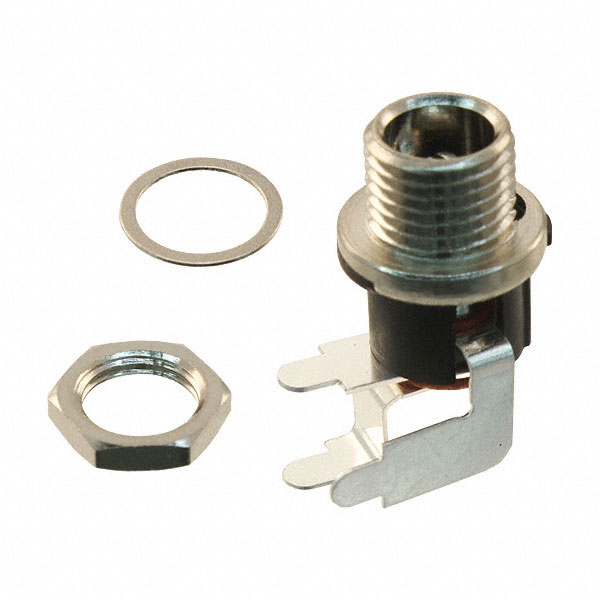

PJ-066B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Actual Diameter :

0.098 (2.50mm ID), 0.224 (5.70mm OD)

Packaging :

Bulk

Color :

Black

Insulation Resistance :

100MOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Current Rating (Amps) :

5A

Feature :

Mounting Hardware, Thread Lock

Contact Material - Plating :

Silver

Contact Material :

Brass, Phosphor Bronze

Current Rating :

5A

Operating Temperature :

-25°C~70°C

Mounting Type :

Panel Mount, Through Hole, Right Angle

Number of Conductors :

2

Min Operating Temperature :

-25°C

Thread Size :

5/16-32

Published :

2012

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Body Color :

Silver

Housing Material :

Polybutylene Terephthalate (PBT)

Voltage - Rated :

24VDC

Material Flammability Rating :

UL94 V-0

Shielding :

Unshielded

Mating Length/Depth :

0.331 8.40mm

Factory Lead Time :

11 Weeks

Connector Type :

JACK

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Max Operating Temperature :

70°C

Housing Color :

Black

Mount :

Bulkhead, Panel, Through Hole

Orientation :

Horizontal

Gender :

Male

Lead Free :

Lead Free

Termination :

Solder

Contact Gender :

Male

Mounting Feature :

Bulkhead - Front Side Nut

Body Material :

Brass

Contact Plating :

Nickel, Silver

Internal Switch(s) :

Single Switch, Normally Closed
