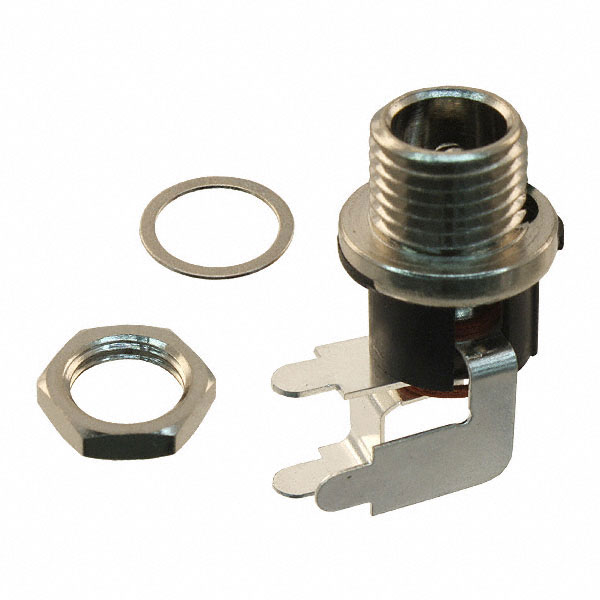

PJ-066A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Internal Switch(s) :

Single Switch, Normally Closed

Contact Gender :

Male

Insulation Resistance :

100MOhm

Feature :

Mounting Hardware, Thread Lock

RoHS Status :

RoHS Compliant

Voltage - Rated :

24VDC

Min Operating Temperature :

-25°C

Mounting Feature :

Bulkhead - Front Side Nut

Current Rating (Amps) :

5A

Factory Lead Time :

11 Weeks

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Material Flammability Rating :

UL94 V-0

Color :

Black

Published :

2012

Current Rating :

5A

Contact Material - Plating :

Silver

Orientation :

Horizontal

Operating Temperature :

-25°C~70°C

Body Material :

Brass

Actual Diameter :

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Housing Material :

Polybutylene Terephthalate (PBT)

Mount :

Bulkhead, Panel, Through Hole

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Length/Depth :

0.331 8.40mm

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Lead Free :

Lead Free

Shielding :

Unshielded

Body Color :

Silver

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Connector Type :

JACK

Contact Material :

Brass, Phosphor Bronze

Max Operating Temperature :

70°C

Gender :

Male

Mounting Type :

Panel Mount, Through Hole, Right Angle

Contact Plating :

Nickel, Silver

Number of Conductors :

2

Thread Size :

5/16-32

Housing Color :

Black

Termination :

Solder
