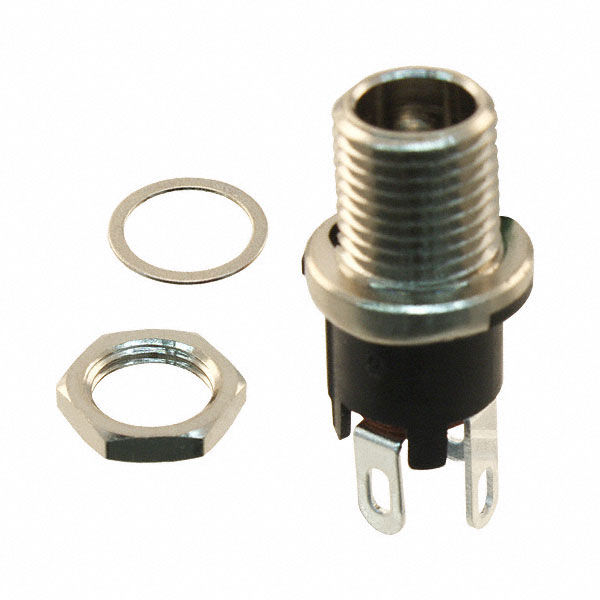

PJ-065B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Actual Diameter :

0.098 (2.50mm ID), 0.240 (6.10mm OD)

Published :

2012

Number of Conductors :

2

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Contact Plating :

Nickel, Silver

Factory Lead Time :

11 Weeks

Mounting Feature :

Bulkhead - Front Side Nut

Operating Temperature :

-25°C~70°C

Max Operating Temperature :

70°C

Voltage - Rated :

24VDC

Contact Material - Plating :

Silver

Current Rating :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Vertical

Contact Gender :

Male

Connector Type :

JACK

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Internal Switch(s) :

Single Switch, Normally Closed

RoHS Status :

RoHS Compliant

Mount :

Bulkhead, Front Side Nut, Panel

Color :

Black

Termination :

Solder Eyelet(s)

Current Rating (Amps) :

5A

Material Flammability Rating :

UL94 V-0

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Gender :

Male

Min Operating Temperature :

-25°C

Thread Size :

5/16-32

Housing Color :

Black

Contact Material :

Brass, Phosphor Bronze

Mating Length/Depth :

0.421 10.70mm

Shielding :

Unshielded

Body Color :

Black

Mounting Type :

Panel Mount

Packaging :

Bulk

Feature :

Mounting Hardware, Thread Lock

Insulation Resistance :

100MOhm

Body Material :

Brass

Lead Free :

Lead Free

Housing Material :

Polybutylene Terephthalate (PBT)
