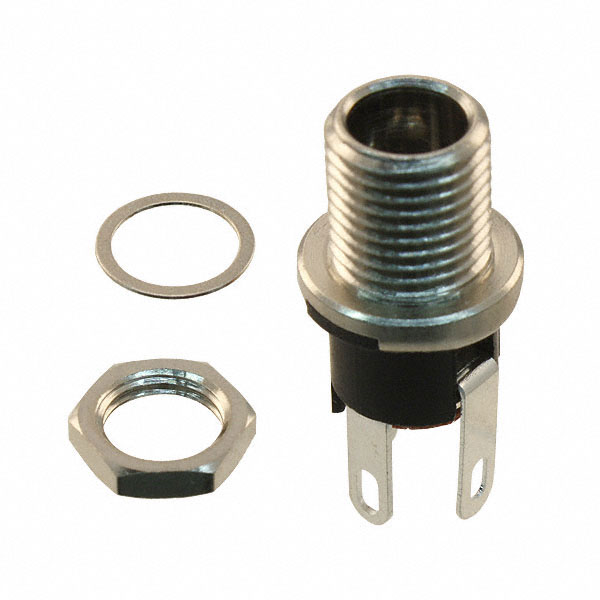

PJ-065A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Shielding :

Unshielded

Voltage - Rated :

24VDC

Contact Gender :

Male

Termination :

Solder Eyelet(s)

Internal Switch(s) :

Single Switch, Normally Closed

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Packaging :

Bulk

Material Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Body Color :

Black

Current Rating (Amps) :

5A

Body Material :

Brass

Color :

Black

Mounting Feature :

Bulkhead - Front Side Nut

Thread Size :

5/16-32

Connector Type :

JACK

Feature :

Mounting Hardware, Thread Lock

Housing Material :

Polybutylene Terephthalate (PBT)

Number of Conductors :

2

Published :

2012

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Min Operating Temperature :

-25°C

Contact Material :

Brass, Phosphor Bronze

Mounting Type :

Panel Mount

Operating Temperature :

-25°C~70°C

Gender :

Male

Contact Plating :

Nickel, Silver

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Vertical

Housing Color :

Black

Max Operating Temperature :

70°C

Mount :

Bulkhead, Front Side Nut, Panel

Mating Length/Depth :

0.421 10.70mm

Factory Lead Time :

11 Weeks

RoHS Status :

RoHS Compliant

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Actual Diameter :

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Contact Material - Plating :

Silver

Insulation Resistance :

100MOhm

Current Rating :

5A
