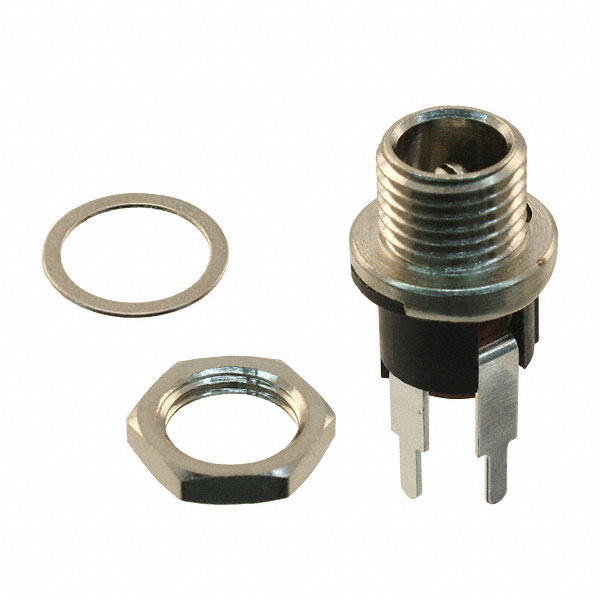

PJ-064B

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Packaging :

Bulk

Published :

2012

Mount :

Bulkhead, Front Side Nut, Panel

Number of Conductors :

2

Min Operating Temperature :

-25°C

Material Flammability Rating :

UL94 V-0

Mounting Feature :

Bulkhead - Front Side Nut

Housing Material :

Polybutylene Terephthalate (PBT)

Termination :

Solder

Housing Color :

Black

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Body Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

5A

Connector Type :

JACK

Mating Length/Depth :

0.348 8.85mm

RoHS Status :

RoHS Compliant

Contact Material - Plating :

Silver

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Operating Temperature :

-25°C~70°C

Voltage - Rated :

24VDC

Insulation Resistance :

100MOhm

Contact Plating :

Nickel, Silver

Color :

Black

Internal Switch(s) :

Single Switch, Normally Closed

Body Material :

Brass

Mounting Type :

Panel Mount

Gender :

Male

Lead Free :

Lead Free

Current Rating (Amps) :

5A

Orientation :

Vertical

Actual Diameter :

0.098 (2.50mm ID), 0.224 (5.70mm OD)

Shielding :

Unshielded

Factory Lead Time :

11 Weeks

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Feature :

Mounting Hardware, Thread Lock

Thread Size :

5/16-32

Contact Material :

Brass, Phosphor Bronze

Contact Gender :

Male

Max Operating Temperature :

70°C
