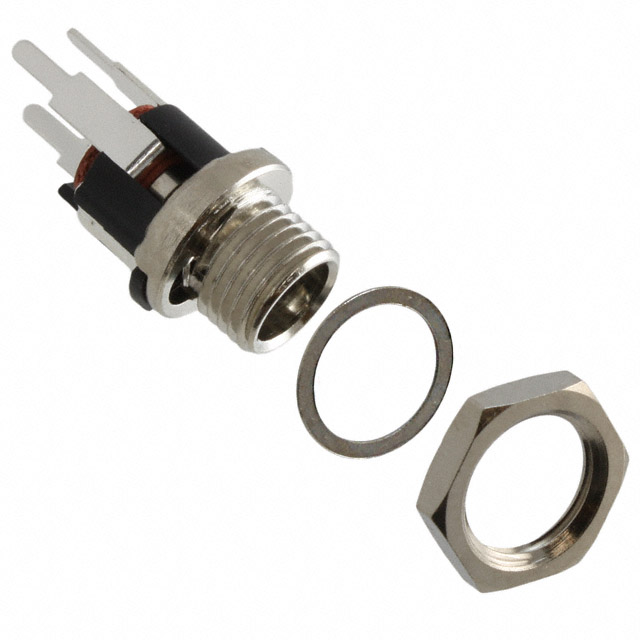

PJ-064A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Termination :

Solder

Contact Gender :

Male

Housing Material :

Polybutylene Terephthalate (PBT)

Voltage - Rated :

24VDC

Shielding :

Unshielded

Connector Type :

JACK

Operating Temperature :

-25°C~70°C

Published :

2015

Max Operating Temperature :

70°C

Number of Conductors :

2

Insulation Resistance :

100MOhm

Body Color :

Black

Industry Recognized Mating Diameter :

2.00mm ID (0.079), 5.50mm OD (0.217)

Gender :

Male

Mount :

Bulkhead, Front Side Nut, Panel

Body Material :

Brass

Mounting Type :

Panel Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Mating Length/Depth :

0.329 8.35mm

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-25°C

Packaging :

Bulk

Mounting Feature :

Bulkhead - Front Side Nut

Internal Switch(s) :

Single Switch, Normally Closed

Current Rating :

5A

Feature :

Mounting Hardware, Thread Lock

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Contact Plating :

Nickel

Color :

Black

Actual Diameter :

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass, Phosphor Bronze

Orientation :

Vertical

Housing Color :

Black

Factory Lead Time :

11 Weeks

Contact Material - Plating :

Silver

Thread Size :

5/16-32

Current Rating (Amps) :

5A
