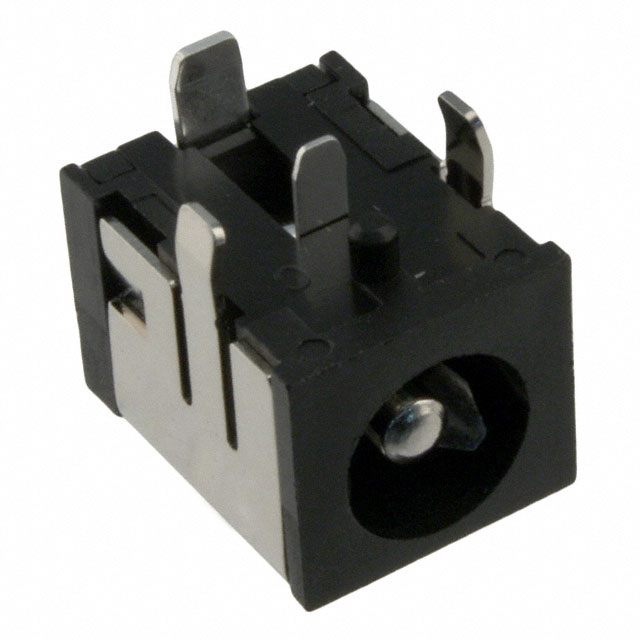

PJ-063BH
Or copy the link below:
- Mfr.Part #
- PJ-063BH
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN POWER JACK 2.5X5.5MM
- Stock
- 3,200
- In Stock ：
- 3,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Factory Lead Time :
- 11 Weeks
- Contact Plating :
- Nickel
- Operating Temperature :
- -25°C~85°C
- Contact Material - Plating :
- Silver
- Shielding :
- Shielded
- Contact Gender :
- Male
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Housing Color :
- Black
- Feature :
- Board Guide
- Connector Type :
- JACK
- Current Rating :
- 8A
- Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 24VDC
- Termination :
- Kinked Pin
- Published :
- 2011
- Industry Recognized Mating Diameter :
- 2.50mm ID (0.098), 5.50mm OD (0.217)
- Lead Free :
- Lead Free
- Current Rating (Amps) :
- 8A
- Mount :
- Through Hole
- Min Operating Temperature :
- -25°C
- Body Color :
- Black
- Orientation :
- Horizontal
- Gender :
- Male
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Mating Length/Depth :
- 0.348 8.85mm
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Brass, Copper Alloy
- Packaging :
- Bulk
- Max Operating Temperature :
- 85°C
- Number of Conductors :
- 2
- Insulation Resistance :
- 100MOhm
- Number of Positions/Contacts :
- 2 Conductors, 2 Contacts
- Internal Switch(s) :
- Does Not Contain Switch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Actual Diameter :
- 0.098 (2.50mm ID), 0.256 (6.50mm OD)
- Datasheets
- PJ-063BH
