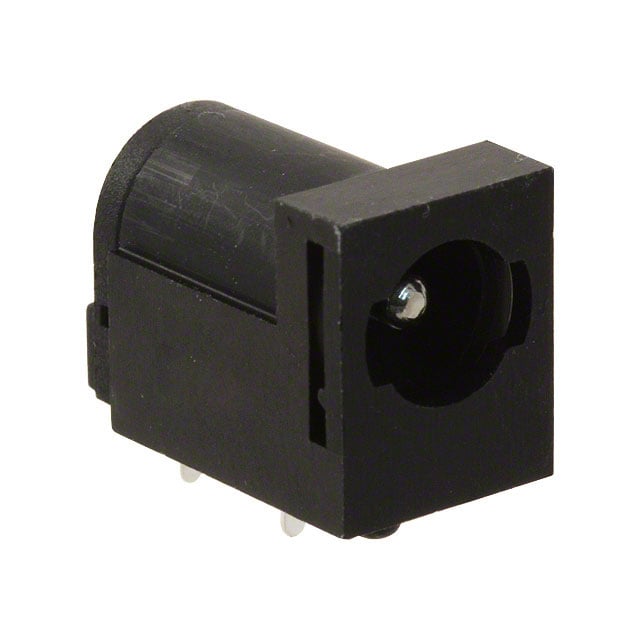

PJ-059AH
Or copy the link below:
- Mfr.Part #
- PJ-059AH
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 2X5.5MM SOLDER
- Stock
- 2,096
- In Stock ：
- 2,096
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Shielding :
- Unshielded
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 11 Weeks
- Orientation :
- Horizontal
- Contact Gender :
- Male
- Material Flammability Rating :
- UL94 V-0
- Color :
- Black
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Body Color :
- Black
- Current Rating (Amps) :
- 5A
- Current Rating :
- 5A
- Operating Temperature :
- -25°C~85°C
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Voltage - Rated :
- 24VDC
- Contact Material :
- Brass, Copper Alloy
- Max Operating Temperature :
- 85°C
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Packaging :
- Tray
- Gender :
- Male
- Contact Material - Plating :
- Silver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -25°C
- Insulation Resistance :
- 100MOhm
- Mating Length/Depth :
- 0.386 9.80mm
- Connector Type :
- JACK
- Published :
- 2011
- Mounting Type :
- Through Hole, Right Angle
- Number of Conductors :
- 2
- Lead Free :
- Lead Free
- Housing Color :
- Black
- Termination :
- Solder
- Feature :
- Board Guide
- Actual Diameter :
- 0.079 (2.00mm ID), 0.224 (5.70mm OD)
- Industry Recognized Mating Diameter :
- 2.10mm ID (0.083), 5.50mm OD (0.217)
- Internal Switch(s) :
- Single Switch, Normally Closed
- Contact Plating :
- Nickel
- Datasheets
- PJ-059AH
