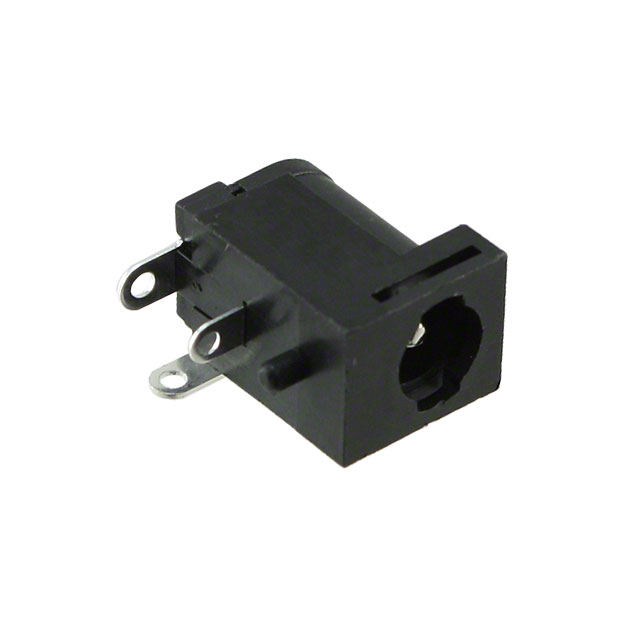

PJ-058AH

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Housing Material :

Polybutylene Terephthalate (PBT)

Orientation :

Horizontal

Mating Length/Depth :

0.386 9.80mm

Current Rating (Amps) :

5A

Mount :

Through Hole

Mounting Type :

Through Hole, Right Angle

Termination :

Solder Eyelet(s)

Connector Type :

JACK

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Operating Temperature :

-25°C~85°C

Contact Material - Plating :

Silver

Internal Switch(s) :

Single Switch, Normally Closed

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

Gender :

Male

Contact Material :

Brass, Copper Alloy

Color :

Black

Insulation Resistance :

100MOhm

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

11 Weeks

Current Rating :

5A

Shielding :

Unshielded

Voltage - Rated :

24VDC

Housing Color :

Black

Feature :

Board Guide

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-25°C

Max Operating Temperature :

85°C

Lead Free :

Lead Free

Contact Plating :

Nickel

Published :

2011

Body Color :

Black

Number of Conductors :

2

Actual Diameter :

0.079 (2.00mm ID), 0.224 (5.70mm OD)

Contact Gender :

Male
