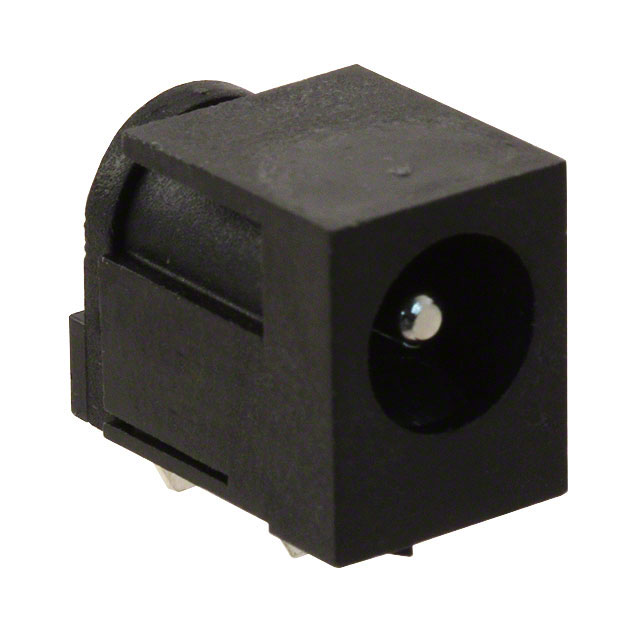

PJ-057A

Manufacturer :

CUI Devices

Product Category :

Power Connectors

Current Rating (Amps) :

2.5A

Color :

Black

Voltage - Rated :

24VDC

Internal Switch(s) :

Single Switch, Normally Closed

Packaging :

Bulk

Orientation :

Horizontal

Insulation Resistance :

100MOhm

RoHS Status :

RoHS Compliant

Mating Length/Depth :

0.360 9.15mm

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Feature :

Board Guide

Current Rating :

2.5A

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Gender :

Male

Number of Conductors :

2

Material Flammability Rating :

UL94 V-0

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Termination :

Solder

Operating Temperature :

-25°C~85°C

Lead Free :

Lead Free

Shielding :

Unshielded

Contact Gender :

Male

Housing Material :

Polybutylene Terephthalate (PBT)

Connector Type :

JACK

Published :

2011

Factory Lead Time :

11 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

85°C

Contact Material - Plating :

Tin

Body Color :

Black

Housing Color :

Black

Mount :

Through Hole

Actual Diameter :

0.079 (2.00mm ID), 0.248 (6.30mm OD)

Contact Material :

Brass, Copper Alloy

Contact Plating :

Nickel

Min Operating Temperature :

-25°C
