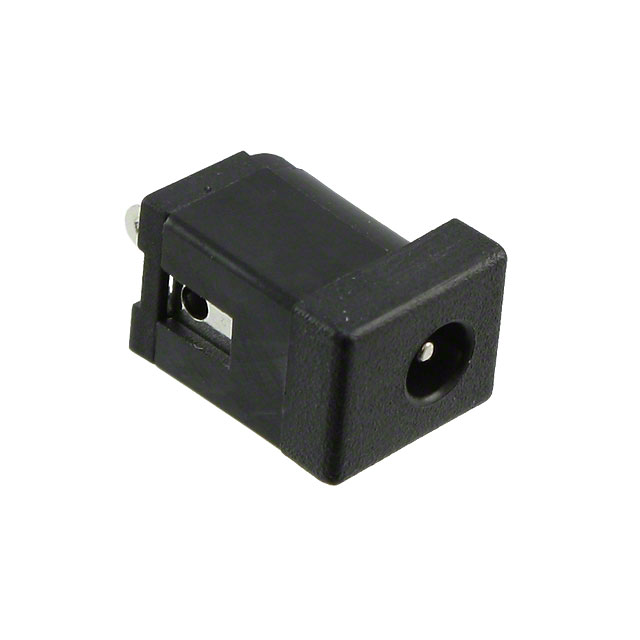

PJ-055D
Or copy the link below:
- Mfr.Part #
- PJ-055D
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 1.3X3.4MM SOLDER
- Stock
- 16,800
- In Stock ：
- 16,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 24VDC
- Published :
- 2011
- Connector Type :
- JACK
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Contact Material :
- Brass, Copper Alloy
- Number of Conductors :
- 2
- Packaging :
- Bulk
- Actual Diameter :
- 0.039 (1.00mm ID), 0.150 (3.80mm OD)
- Internal Switch(s) :
- Single Switch, Normally Closed
- Shielding :
- Unshielded
- Contact Plating :
- Nickel
- Max Operating Temperature :
- 85°C
- Contact Material - Plating :
- Tin
- Color :
- Black
- Factory Lead Time :
- 11 Weeks
- Gender :
- Male
- Mounting Type :
- Through Hole
- Mating Length/Depth :
- 0.354 9.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Mount :
- Through Hole
- Current Rating :
- 2A
- Termination :
- Solder Eyelet(s)
- Housing Color :
- Black
- Body Color :
- Black
- Current Rating (Amps) :
- 2A
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Contact Gender :
- Male
- Industry Recognized Mating Diameter :
- 1.30mm ID (0.051), 3.40mm OD (0.134)
- Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Operating Temperature :
- -25°C~85°C
- Insulation Resistance :
- 100MOhm
- Min Operating Temperature :
- -25°C
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- PJ-055D
