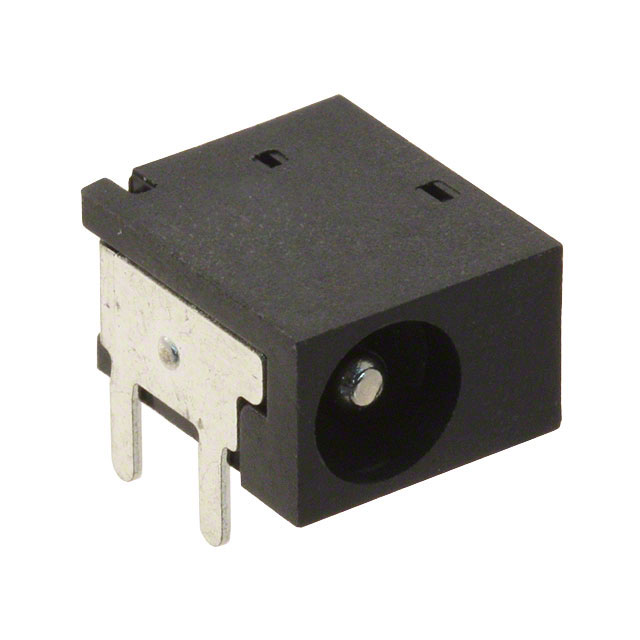

PJ-054
Or copy the link below:
- Mfr.Part #
- PJ-054
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN PWR JACK 1.7X4MM SOLDER
- Stock
- 25,552
- In Stock ：
- 25,552
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Power Connectors
- Max Operating Temperature :
- 85°C
- Mating Length/Depth :
- 0.244 6.20mm
- Internal Switch(s) :
- Single Switch, Normally Closed
- Current Rating (Amps) :
- 2.5A
- Actual Diameter :
- 0.065 (1.65mm ID), 0.173 (4.40mm OD)
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide
- Operating Temperature :
- -25°C~85°C
- Connector Type :
- JACK
- Published :
- 2011
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Packaging :
- Bulk
- Number of Conductors :
- 2
- RoHS Status :
- RoHS Compliant
- Industry Recognized Mating Diameter :
- 1.70mm ID (0.067), 4.00mm OD (0.157) EIAJ-2
- Housing Color :
- Black
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Voltage - Rated :
- 24VDC
- Factory Lead Time :
- 11 Weeks
- Gender :
- Male
- Contact Plating :
- Nickel
- Contact Material - Plating :
- Tin
- Mount :
- Through Hole
- Contact Material :
- Brass, Copper Alloy
- Current Rating :
- 2.5A
- Orientation :
- Horizontal
- Min Operating Temperature :
- -25°C
- Shielding :
- Unshielded
- Body Color :
- Black
- Lead Free :
- Lead Free
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Datasheets
- PJ-054
